Description
MLW24-40.5 is three-pole gas-insulated switch of open installation on 35 kV.

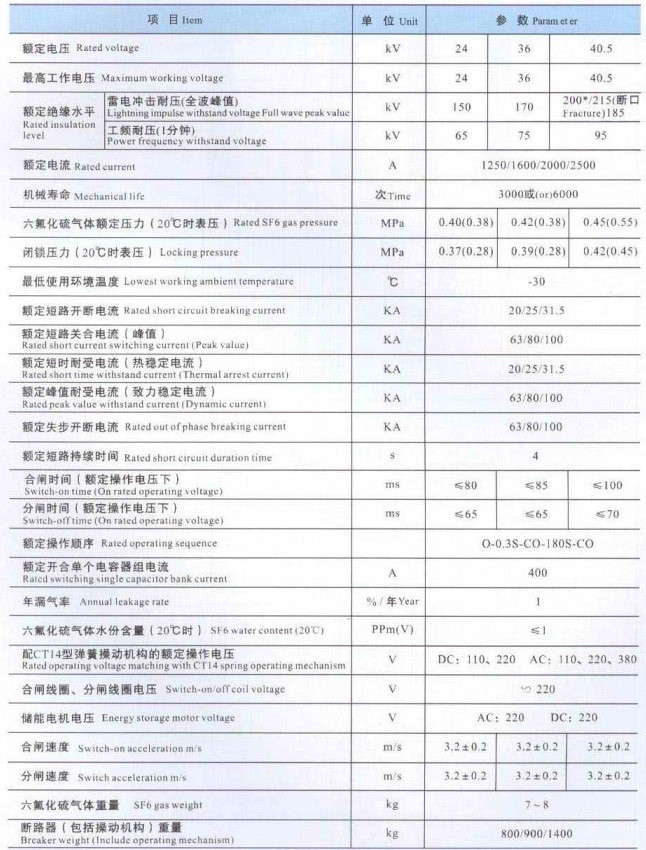

Rated voltage, kV: 35
Maximum working voltage, kV: 40.5
Rated current, A: 1250, 1600, 2000, 2500
MLW24-40.5 gas-insulated switch — a three-pole high-voltage switching device using SF6 gas as an arc extinction medium; Designed for quick switching on and off of individual circuits or electrical equipment in the power system, in normal or emergency conditions, with manual, remote or automatic control. In networks of three-phase alternating current of a frequency of 50 Hz with a rated voltage of 35 kV.
