Models MGW9-12, 24 (W) are disconnectors of the open (outdoor) installation is designed to enable and disable de-energized sections of the electrical circuit with a rated voltage of 10 kV or 20 kV and an alternating current frequency of 50 and 60 Hz.
Rated voltage, kV: 10, 20
Rated currents, A: 400, 630

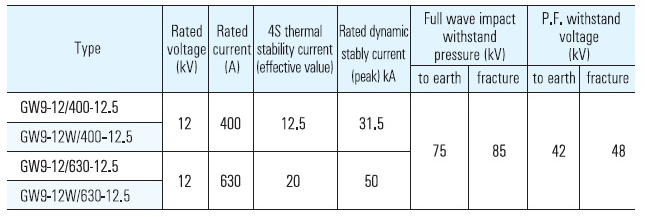

Technical Parameters of the Disconnector GW9-12, 24(W)
| Rated voltage, kV | 10, 20 |
| Maximum operating voltage | 12kV, 24kV |
| Rated current | 630A |
| Rated frequency | 50/60 Hz |
| Rated peak withstand voltage | 50, 63 |
| Rated short-time withstand current | 20, 25 |
| Switching cycles | 2000 |
The primary function of a disconnector is to serve as a visual indicator of whether an electrical connection is open or closed; this lets network operators know if the circuit/equipment is either energised or de-energised.
It is important operators can confirm the energised state of the circuit/equipment in order that they can safely perform inspections, maintenance, and repairs, without unnecessary risk.
