Disconnector-MGW4-12

Disconnector VGW4-12

Category:
  • Share:
Ask a Question

Description



Models MGW4-12, MGW4-24 are outdoor disconnectors designed to enable and disable de-energized sections of the electrical circuit with a rated voltage of 10 kV or 20 kV and an alternating current frequency of 50 or 60 Hz.



Environmental conditions

Height: <3000m;

Ambient temperature: -30 ° С- + 40 ° С;

Wind speed: <35 m / s;

Air pollution: IV;

Earthquake intensity: <8 degrees;

Ice thickness: <10 mm.



Количество просмотров 25

Parameters



Technical Parameters of disconnector MGW4-12,24



Rated voltage, kV 10, 20
Maximum operating voltage 12kV, 24kV
Rated current 630A
Rated frequency 50/60Hz
Rated peak withstand voltage 50, 63
Rated short-time withstand current 20, 25
Switching cycles 2000



Parameter name Unit   Parameter value
Rated voltage kv 10
Maximum operating voltage kV 12
Rated frequency Hz 50/60
Rated current A 200 400 630 1250
2S thermal stability current KA (effective value) kA 6.3 12.5 20 31.5
Dynamic stability current KA (effective value) kA 16 31.5 50 80
Rated lightning impulse withstand voltage Relatively kV 105
Between fractures kV 120
Rated 1min power frequency withstand voltage Relatively kV 40
Between fractures kV 47
Creepage distance mm 300
Rated longitudinal mechanical load of terminal N 245
Matching mechanism CJ6, CJ11M-G maintenance free electric operating mechanism or CS11-1, CS11, CS8-6D manual mechanism



Technical Specification



Rated Voltage Max. Voltage Rated Current Dynamic stable current Thermal stable current 1MIN Power Frequency Withstand Voltage(valid value)  Lightning Impulse Withstand Voltage（peak value) Breaking capacitor current Creep Distance Weight/Pole Re-mark
against ground between contacts against ground between contacts
KV KV A KA KA-S KV KV A Mm Kg
ordinary anti-pollution
12

24

 12

24

 630 50 20-4 75 85 165 200 625 875 120
1250 80 31.5-4 145
1600 100 40-2 1225 170
2000
35

(40.5)

 40.5 630 50 20-4 80 90 185 215 625 875 120
1250 80 31.5-4 145
1600 100 40-2 1225 170
2000
63

(72.5)

 72.5 630 50 20-4 140 160 325 375 1100 1600 180
1250 80 31.5-4 200
1600 100 40-2 1813 225
2000
2500 125 50-2 2205 260
110

(126)

 126 630 50 20-4 230

(185)

 265

(450)

 550

(450)

 630

(520)

 1870 2750 200 altitude≤2500m
1250 80 31.5-4 230
1600 100 40-2 3150 260
2000
(145) 145 1250 80 31.5-4 275 315 650 750 2400 3800 300 altitude≤4000m
1600 100 40-2 320
2000
3150 125 50-3 380
220

(245)

 252 1250 100 40-3 450 530 1050 1200 0.5 3740 5500

6300

 630~710
1600 125 50-3 650~750
2000
2500
3150 690~780



Количество просмотров 25

Solutions



The primary function of a disconnector is to serve as a visual indicator of whether an electrical connection is open or closed; this lets network operators know if the circuit/equipment is either energised or de-energised.

It is important operators can confirm the energised state of the circuit/equipment in order that they can safely perform inspections, maintenance, and repairs, without unnecessary risk.

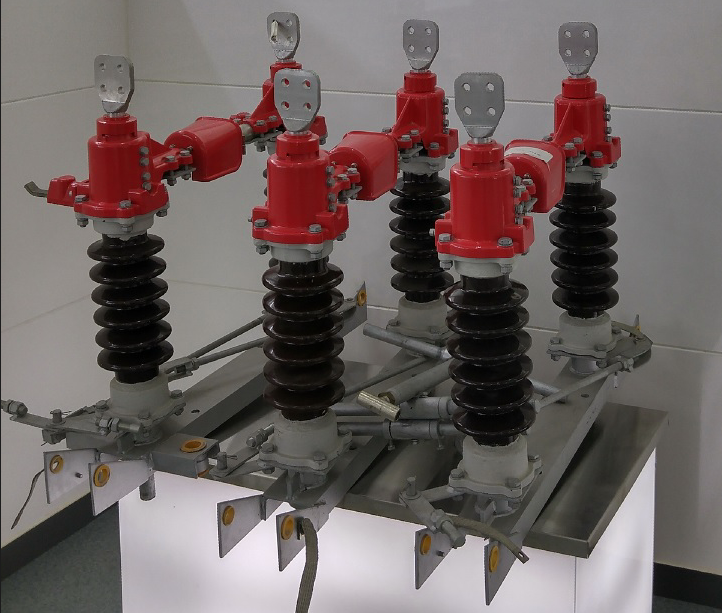

Disconnector MGW4-12-2

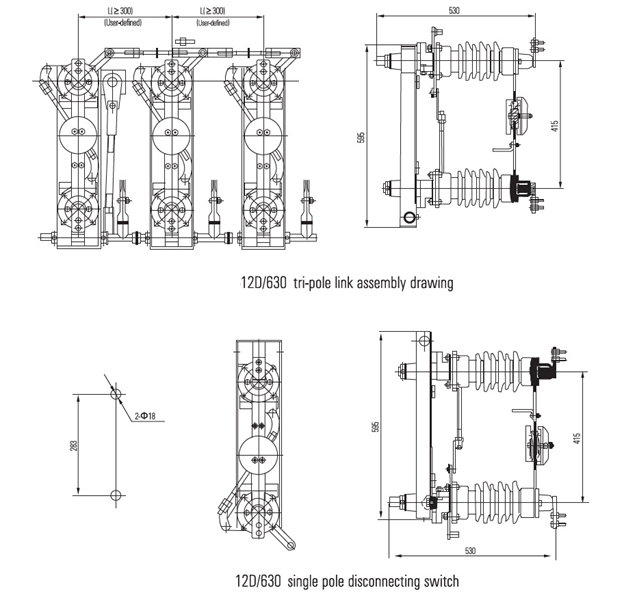

Overall dimensions of disconnector MGW4-12kV and 24kV



Disconnector MGW4-12-3

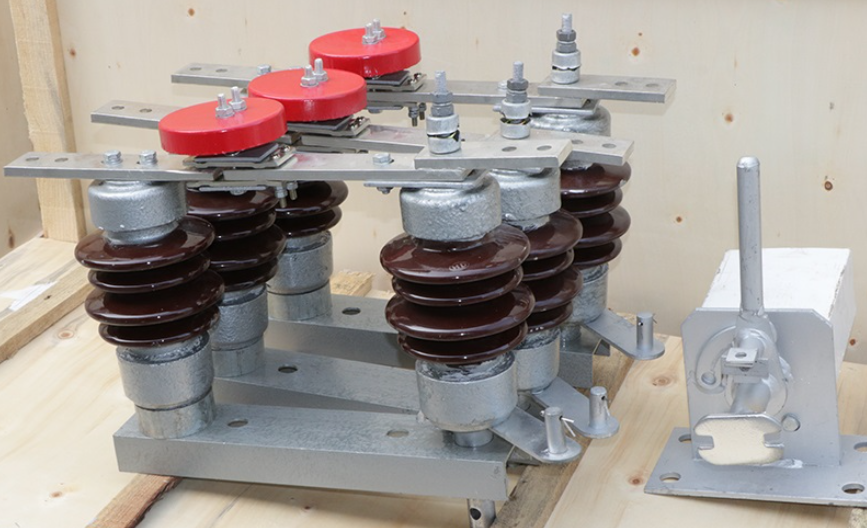

Disconnector MGW4-12-4
