Voltage Transformer JDZ(J)W-12-2

Voltage Transformer JDZ(J)W-12

Category:
  • Share:
Ask a Question

Description



Model JDZ(J)W-12 potential transformer is single-phase multi-winding whole sealing epoxy pouring product. It is used both indoor for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below.



Model

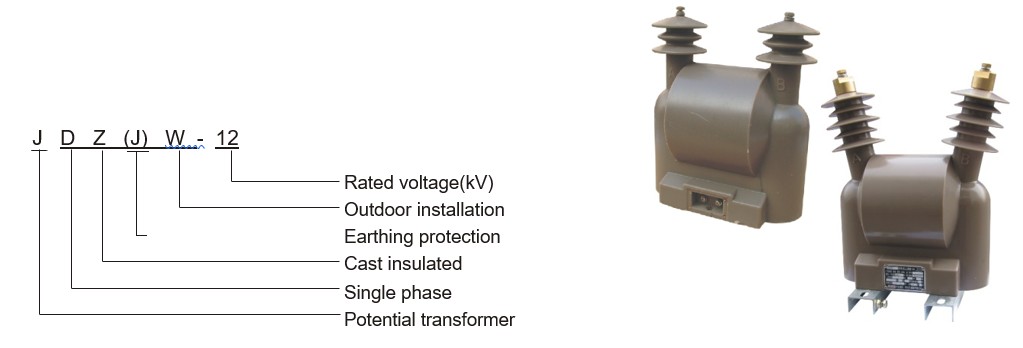

Voltage-Transformer-JDZ(J)W-12-2

This series of potential transformer is of epoxy pouring whole sealing insulation strcture. Encircled by rolled silicon steel strap and through annealing process, the iron core, together with primary winding and secondary winding, is formed by pouring epoxy. This transformer owns excellent dirt-proof and moisture resistant performances. Secondary connecting terminal is equipped with connecting protective terminal box, which has 3 different outlet directions. It is convenient in wiring, dirt-proof and thief-proof.

Количество просмотров 108

Parameters



Main Technical parameters

  1. Rated insulation level: 12/42/75kV;
  2. Rated load power factor: COSФ =0.8.

Table 1 for rated secondary output and corresponding class of accuracy.



Table 1

TypeRated voltage ratio(V)Rated output classMax.output(VA)
0.20.51
JDZW-1211000/1104080240600
JDZJW-1211000/ 3/110/ 3/110/32540180500



Table 2 for induced withstand voltage, please see the table.



Table 2

TypeRated voltage ratio(V)Induced tolerance voltage 0.2 kV(r, ms)Test frequency (Hz)Test time (s)
JDZ(J)W-1211000/ 3/110/ 3/110/32815040
Количество просмотров 108

Solutions



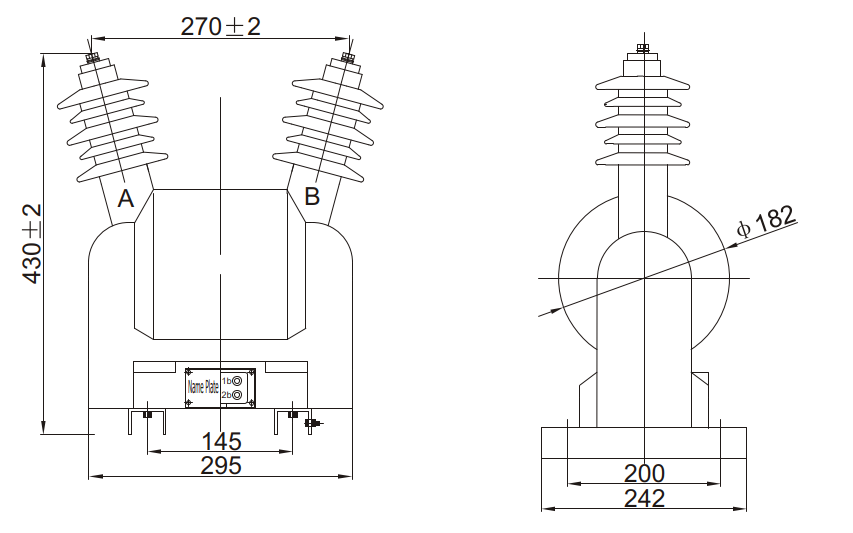

Outline dimension

Voltage Transformer JDZ(J)W-12-3

We offer current and voltage transformers with a full range of current ratios, accuracy classes, and mounting options to suit any industrial or utility-grade power distribution project.

  • Certified to IEC and GB standards
  • OEM and custom labeling available
  • Tested for partial discharge, insulation resistance, and ratio error
  • Ideal for panel builders, switchgear manufacturers, and EPC contractors
