Voltage Transformer JDJJ2-121

Voltage Transformer JDJJ2-12

Category:
  • Share:
Ask a Question

Description



This potential transformer is single phase, oil-filled and used outdoor product. It has many metrics, such as big capability, high precision, etc. It has three windings: the 0.2 class of one is used for metering, the 0.5 class of one is used for control, and the 3 class is used for zero sequence protection.

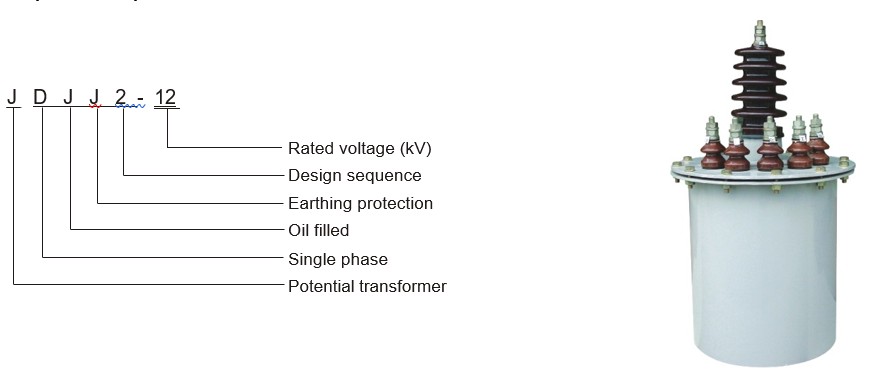

Model

Voltage Transformer JDJJ2-12

Structure feature



Rated voltage ratio(V) Rated output class Max.output(VA) Rated insulated level(kV)
0.2 0.5 3P
6000/ 3/100/ 3/100/3 20 40 50 300 7.2/32/60
11000/ 3/110/ 3/110/3 20 50 50 500 12/42/75
Количество просмотров 24

Parameters



Outline dimension

JDJJ2-12 Outline dimension
