MCJ20-2

Vacuum Contactor 3p MCJ20-2.0

Category:
  • Share:
Ask a Question

Description



Vacuum contactor MCJ20-2.0 stationary type, three-pole, closed type (with top cover) — designed for frequent switching of electrical loads in three-phase alternating current networks with voltage up to 1140V, frequency 50-60Hz, conducting currents under normal conditions as well as in conditions of working overload.



Rated voltage, kV: 1,14

The greatest working voltage, kV: 2,0

Rated current, A: 250, 400, 630, 800

Number of Poles: 3 (Three Pole)

Количество просмотров 35

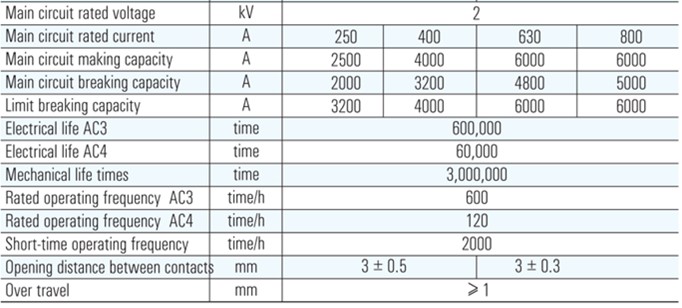

Parameters



MCJ20-2-1



Operating conditions of MCJ20-2.0:

  1. Altitude: up to 2000 m.
  2. Ambient temperature: from -45°С to + 45°С.
  3. Environmental Humidity:
  • the average value of relative humidity during the day is not more than 90%;
  • the average value of relative humidity during the month is not more than 80% at a temperature of plus 25 ° C.
  1. Seismic resistance up to 8 points.
  2. Environment is not explosive, does not contain conductive dust, aggressive gases and vapors in concentrations that destroy metal and insulation.
  3. Service life of the circuit breaker 20 years.
  4. Warranty period from the date of commissioning — 2 years.
Количество просмотров 35

Solutions



Contactors MCJ20-2.0 are designed to operate in the following modes:

  • long;
  • intermittently continuous;
  • short-term;
  • intermittently.

Vacuum contactors MCJ20-2.0 are installed in starters, stations and control units of asynchronous motors with squirrel-cage and phase rotors, in remote control systems of drives, control transformers and capacitive batteries. Due to the lack of an electric arc, it has safety and reliability characteristics, low noise level, low maintenance design, as well as small size.

The vacuum contactor is an intrinsically safe device. Its power contacts are located in a closed ceramic vacuum chamber and it can be used in the mining, metallurgical, oil, chemical industries and where it is necessary to ensure and comply with safety standards.

The contactor has two DC coils in the control circuit, a rectifier bridge and a connector for supplying control voltage, both alternating and direct current (see the control circuit in the product passport), which allows the device to be used for various types of power sources. When the contactor is turned on, the control coils go into hold mode at a reduced power consumption of electric energy.

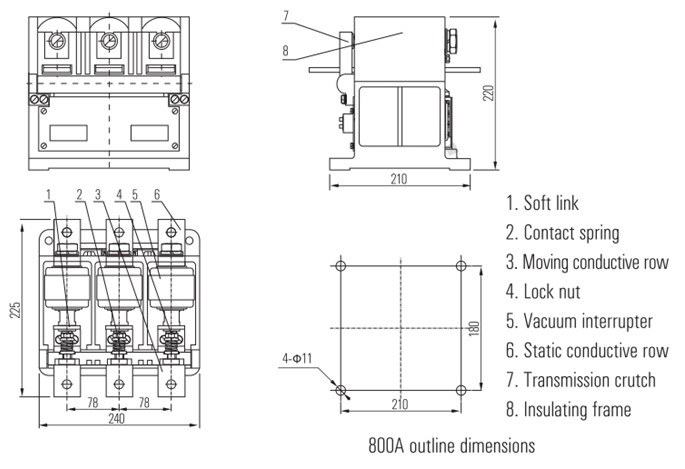

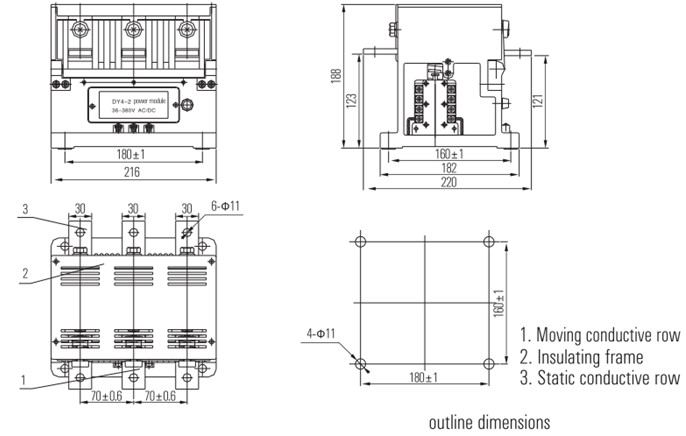

Dimensions of MCJ20-2.0:

MCJ20-2-2MCJ20-2-3

Please state the following when placing the order:

  1. Title, model/specification of the product;
  2. Rated voltage, rated current and rated control voltage;
  3. Quantity of product and spare parts;
  4. Other special requirements.

You can asking Data Sheet List before order by e-mail: power@mettz.com or mettzpower@gmail.com
