Description



Contact system is designed for installation in the main circuits of withdrawable elements in the cells of complete switchgears voltage class 6-40.5kV three-phase alternating current frequency of 50 Hz for networks with insulated or grounded through the arc suppression coil or resistor neutral.

Plug-in contacts (tulips) are movable lamella contacts. They used in various circuit breakers, providing reliable contact with current-carrying part. Such contacts are easy to use. The devices shall be designed to protect against contact.

Contacts, the company offers METTZ, have a high operational safety. Springs of a nonmagnetic material of contacts lamellar provide uniform pressure on the slats and movable contact rod, thus ensuring electrical contact, whose characteristics do not change over time.

Manufacturing material — copper plated with silver. The design is compact.

Количество просмотров 25

Parameters



Rated current, A 630 1250 1600 1600 2000 2500 3150,4000 4000, 5000
Rated short-circuit breaking current, kA 20; 25; 20; 25; 31,5; 20; 25; 31,5; 40; 31,5; 40; 31,5; 40; 31,5; 40; 40 50
Size Package fixed contact, W, mm 35 49 49 79 79 109 109 109
Количество просмотров 25

Solutions



Structural characteristics

  • Uniform pressure of ring spring.
  • Adopt imported No-magnetic stainless steel material to avoid eddy current.
  • Thick silver-plated with strong abrasion resistance.
  • Anti-tarnish treatment to avoid silver layer being oxidation. Insert depth reference size of fixed contact: 34±2mm.
  • The size of the working state in brackets.

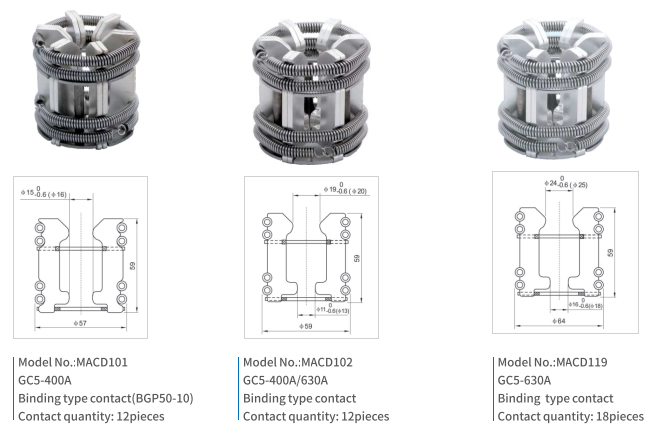

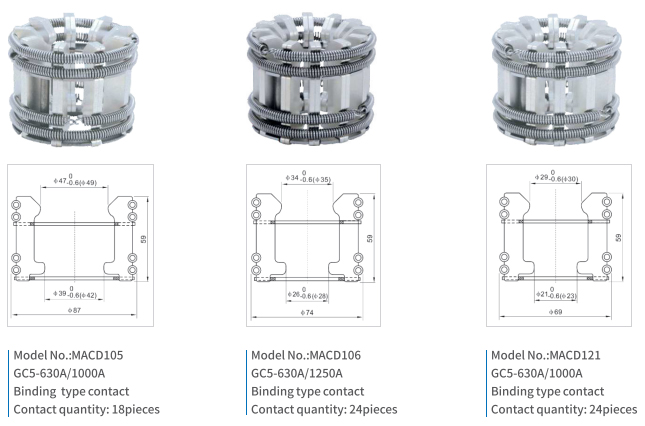

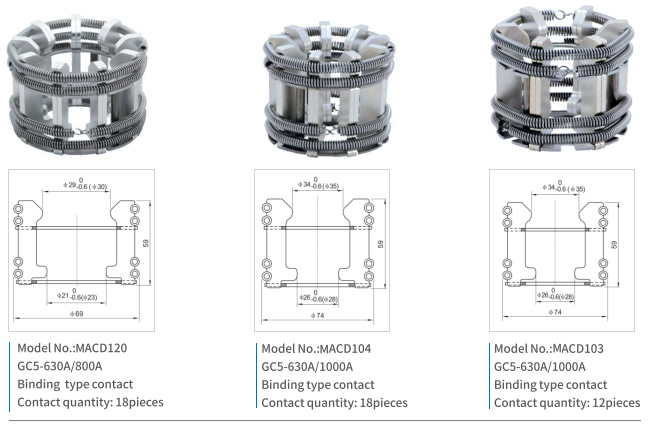

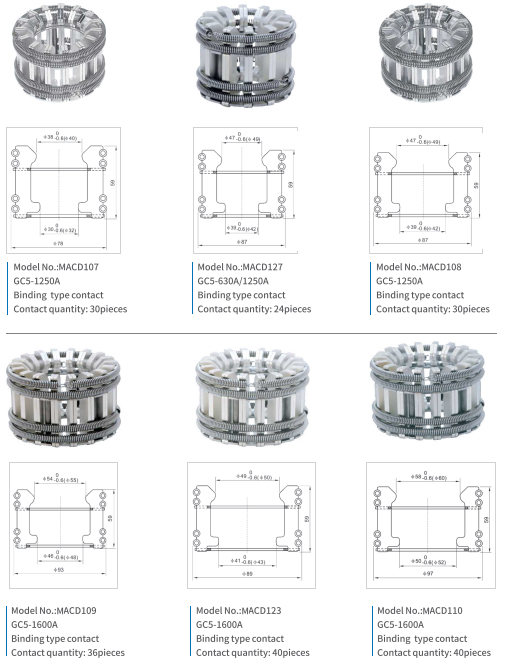

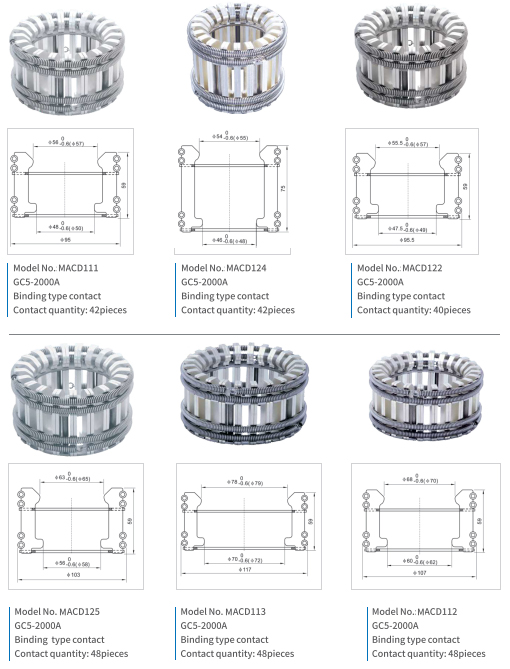

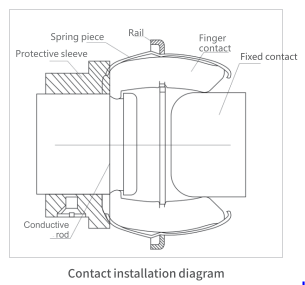

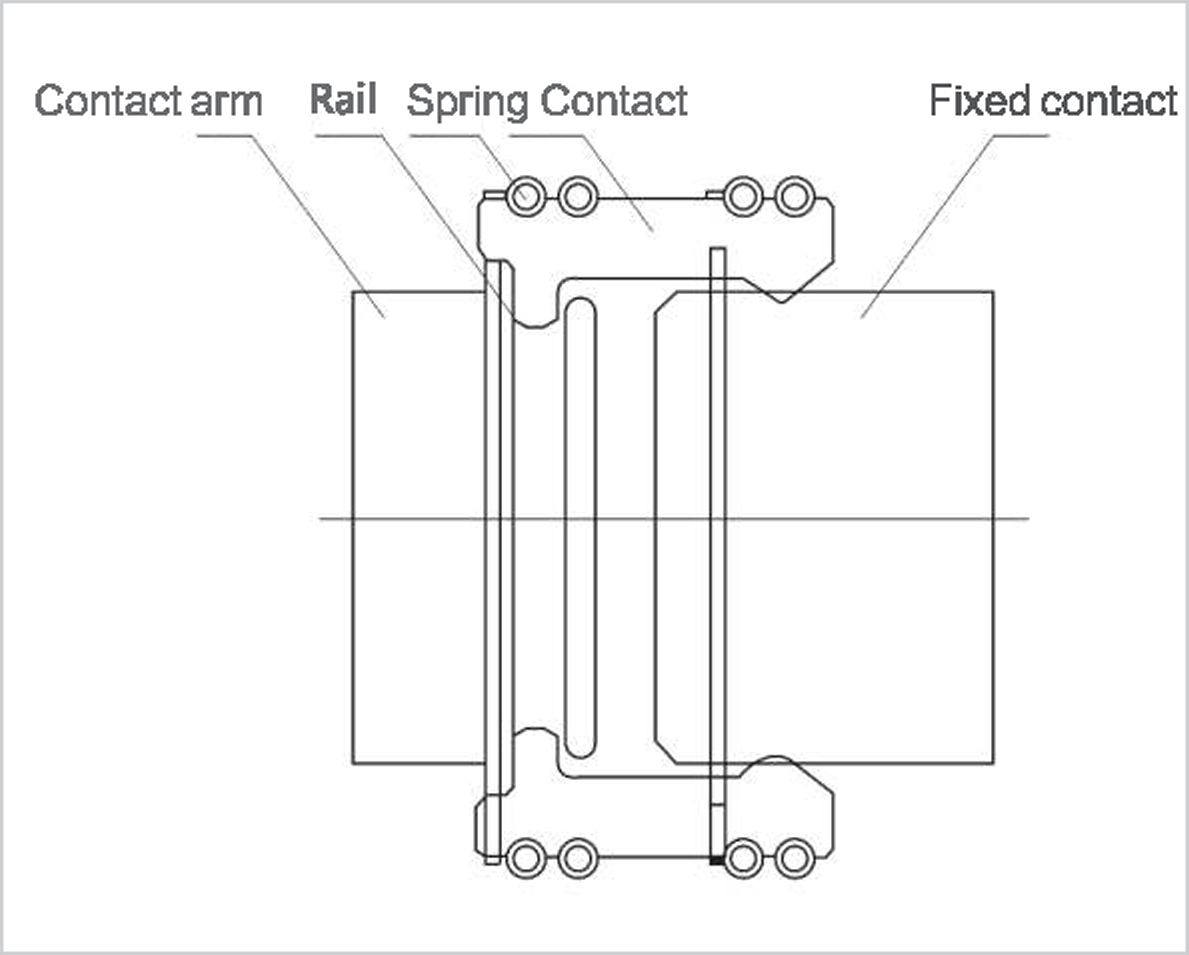

Contact installation diagram

Our company import the newest contact surface local silver plating technology; effectively reduce the cost of products. Plating range is 6< Contact surface >+l< No.n-contact surface* ‘ 8< Con tact surface>+l< No.n-contact surface*- 12<Contact surface>+l< No.n-contact surface* etc. and can be customized according to customers’ requirements.









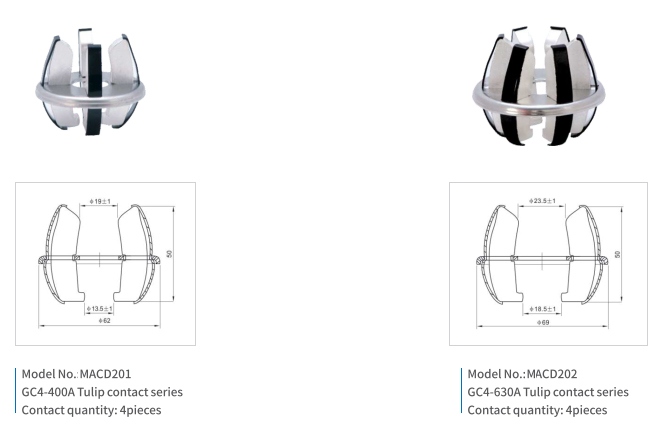

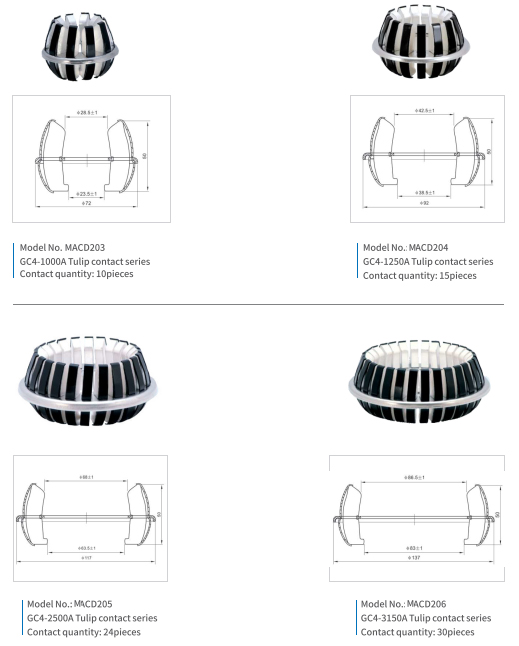

Structural characteristics

  • Spring piece is painted to prevent oxidation and rust.
  • Thick silver plated with strong abrasion resistance.
  • Anti tarnish treatment to avoid silver layer being oxidation.
  • The aluminum protective sleeve plays a fixed protective role to prevent the spring sheet from deforming and fa Hing off.
  • Insert depth reference size of fixed contact: 22 ±2mm.

Our company import the newest contact surface local silver plating technology, effectively reduce the cost of products. Plating range is 6 < Contact surface >+l< No.n- contact surface*’ 8<Contact surface>+l< No.n-contact surface*’ 12<Contact surface>+l< No.n-contact surface* etc. and can be customized according to customers’ requirements.
