Solid-insulated-switchgear-MSIS59-24

Solid-insulated switchgear MGIS59-24

Category:
  • Share:
Ask a Question

Description



Solid-insulated switchgear MGIS59-24 is a ring main unit for the secondary distribution network. MSIS59-24 can be supplied in 5 different configurations suitable for most switching applications in 24 kV distribution networks.

Equipped with smart features, the MSIS59-24 facilitates efficient energy management and operational reliability. It exemplifies the integration of intelligence in power distribution, optimizing performance while ensuring safety.

This product is in conformity with the standards of IEC62271-1:2007, IEC62271-100:2001, IEC62271-200:2003, GB3804-2004, GB3906-2006, GB16926-2009, GB/T11022-2011.

Normal operating conditions:

  1. Air temperature: ±45°C; Daily average ≤25°C
  2. Altitude above sea level: Maximum installation altitude: 4000m
  3. Wind: less than 35m/s;
  4. Earthquake intensity: no more than 8 degrees;
Количество просмотров 29

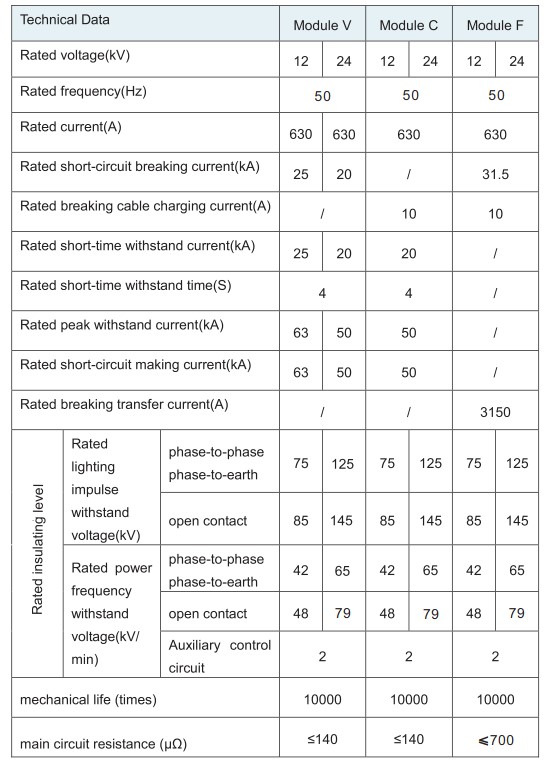

Parameters



Solid-insulated-switchgear-MSIS59-24-1

Available Modules for MSIS59-24:

  1. V Module: Circuit breaker module for effective fault isolation and protection.
  2. C Module: Load switch module, providing reliable switching functionality.
  3. F Module: Load switch with fuse combination module, offering enhanced protection.
  4. PT Module: Potential transformer module, essential for voltage measurement and monitoring.
  5. M Module: Metering module, enabling precise energy consumption and flow measurement.
Количество просмотров 29

Solutions



MSIS59-24 can be supplied with an integrated remote control and monitoring unit.

Benefits of Ring Main Units

MSIS59-24 Ring Main Units offer a comprehensive range of benefits designed to meet the rigorous demands of power distribution networks. These units are engineered to excel in various settings, ensuring consistent performance and safety.

Key advantages include:

  1. Durability and Environmental Resistance: Crafted with an outdoor-ready, fully insulated, and completely sealed structure, these units are built to withstand extreme environmental conditions, ensuring reliable operation in any setting.
  2. Enhanced Safety Features: Equipped with a visible break indicator, these units allow for the easy verification of switch contact positions, significantly enhancing personnel safety by confirming isolation status before maintenance or operational tasks.
  3. Compact and Efficient Design: Their small size, lightweight, and compact structure result in a minimal footprint, making them ideal for space-constrained applications.
  4. Ease of Installation and Operation: Designed for simplicity, these units offer straightforward installation and user-friendly operation. Their reliability and maintenance-free design ensure uninterrupted service and reduced operational costs.
  5. Innovative Linkage Structure: The inclusion of a triple-work linkage system effectively mitigates the risk of equipment malfunctions during operation, enhancing overall system reliability.

METTZ Group is an expert in the production of high-quality electrical equipment, specializing in the manufacturing of a complete set of transmission and distribution equipment within the 10-40.5kV range. The company is dedicated to providing reliable and stable products to its customers, including VCB, ACR, RMU, GIS, AIS, and LBS.

METTZ Group continuously introduces international advanced workmanship and equipment since its foundation, and widely cooperates and communicates with experts at home and abroad in technology. The company can supply custom OEM services such as Logo, custom size, or custom merchandise, etc., according to customer requirements.
