LV-withdrawable-cabinet-GCS

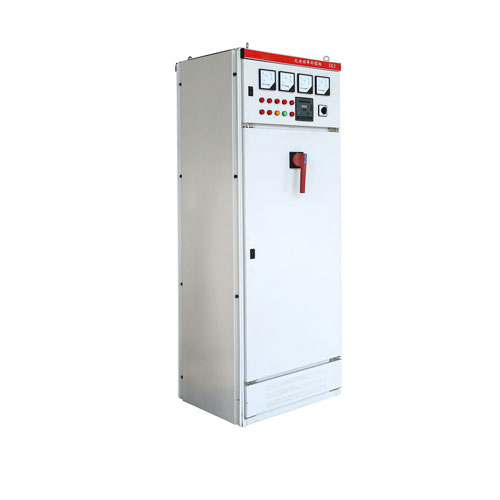

LV withdrawable cabinet GCS

Category:
  • Share:
Ask a Question

Description



LV withdrawable cabinet GCS is a low voltage complete set device for distribution, motor centralized control and reactive power compensation for three phase power supply systems of AC 50(60Hz), rated working voltage 380V(400), (660), and rated current up to and including 4000A.

LV withdrawable cabinet GCS is especially suitable for big power stations, petrochemical and other locations where are highly automated and require computer interfaces.

This product complies with GB7251 «low- voltage switchgear and control equipment», JBIT9661 «low-voltage with drawable switchgear», IEC60349 «low- voltage switchgear and control equipment» standard.

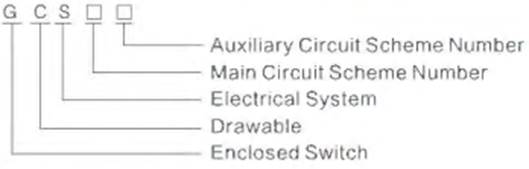

Model

LV-withdrawable-cabinet-GCS-1

Количество просмотров 14

Parameters



Main technical parameters:

 Rated insulation voltage  V AC 660(1000)V
 Rated working voltage Main circuit
Auxiliary circuit		  V
V		 AC 380(660)V
AC 380, 220, 24V  DC110, 220V
 Rated frequency  Hz  50(60)Hz
 Rated current of horizontal bus  A  ≤4000A
 Rated current of vertical bus  A  1000A
 Rated peak withstand current  KA  105(176)KA
 Rated short-time withstand current  KA  50(80)KA



LV-withdrawable-cabinet-GCS-2

Количество просмотров 14

Solutions



Specifications

  1.  Improve thermal capacity of adapter to reduce the additional temperature-rise of connector, cable head and partition caused by temperature-rise of adapter.
  2. Clear and reliable separation among functional units and compartments, the fault of any one unit will not affect others, and the fault will be limited to the smallest range.
  3. Horizontal layout of bus enjoys good dynamic and thermal stability that can withstand short-circuit current impact of 80/176KA. Circuit number of single cabinet of GCS as many as 22 that meets the demand of power plants, metallurgical electrochemistry, industrial and mining enterprises, etc.
  4. Connection with external cables is finished in the cable compartment, cables can be led in or out. The zero-sequence current transformer is mounted in the cable compartment, enjoy convenient installation and maintenance.
  5. The identical power supply distribution system can limit the short circuit current through a current-limiting reactor and stabilize the busbar voltage to a certain value, also can reduce the short-circuit strength of some components to some extent.
  6. Drawer unit has enough secondary connectors (unit 1 and above has 32 pairs, unit 1/2 has 20 pairs) that meet the computer interface and auto-control circuit demands on the contact quantity.

LV-withdrawable-cabinet-GCS-4

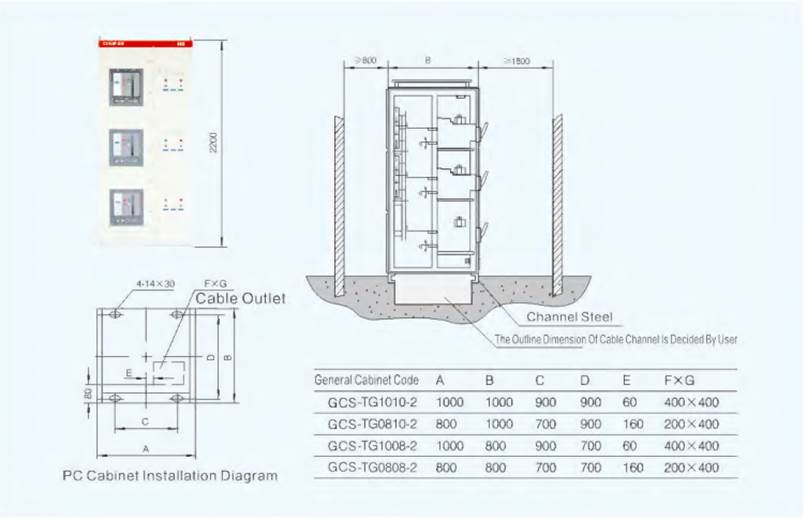

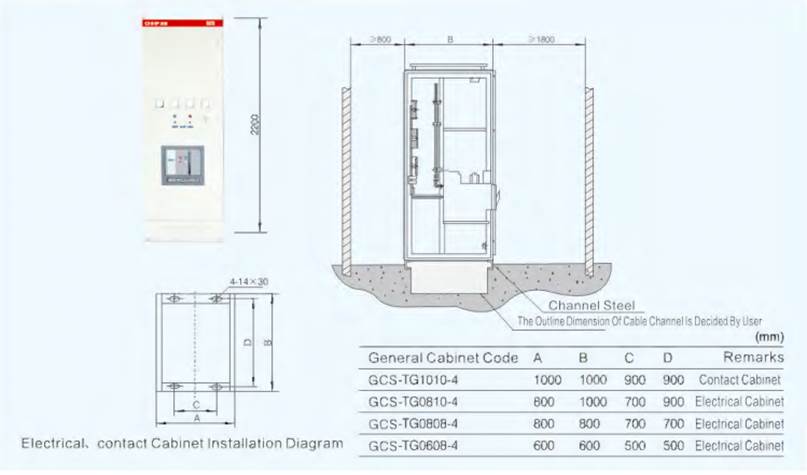

Outline and installation dimension

LV-withdrawable-cabinet-GCS-5 LV-withdrawable-cabinet-GCS-6

LV-withdrawable-cabinet-GCS-7

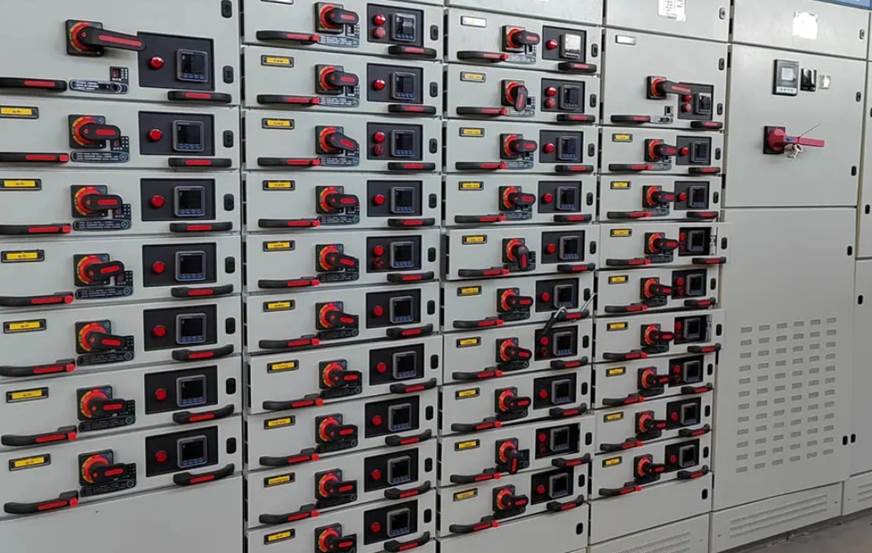

LV withdrawable cabinet GCS is applicable for distribution systems in the power plants, high-rise buildings, and industries such as petroleum, chemical engineering, metallurgy, textile and so on.

METTZ Group stands as a consortium of Chinese electrical firms, renowned for its expertise in manufacturing electrical equipment. We are specialized in crafting a comprehensive suite of transmission and distribution equipment, covering a wide voltage range from 0.4 to 40.5 kV. Our commitment lies in delivering reliable and stable products to our clientele, encompassing vacuum circuit breakers (VCB), gas-insulated switchgear modular units (RMU), solid insulated switchgear (SIS) panels, air insulated switchgear (AIS) panels, and dry compressed air insulated switchgear panels (DIS).

Since our inception, METTZ Group has been at the forefront of adopting international cutting-edge technologies and equipment. We pride ourselves on our extensive collaboration and dialogue with leading experts in the electrical technology sector, both within China and internationally. Our offerings are tailored to meet the specific needs of our clients, including Original Equipment Manufacturer (OEM) services, customization of products to unique parameters and dimensions, all in alignment with our customers’ specifications.

METTZ Group is dedicated to innovation, quality, and customer satisfaction, ensuring that we remain a preferred partner for electrical equipment solutions worldwide.

Hot Tags: Low Voltage switchgear; China; OEM supplier; manufacturers; factory; wholesale; switchgear; cabinet; automation; substation; retrofit; GCS; LV Switchgear; electrical equipment; distribution; transmission; switchboard;

#mettz #mettzgroup # GCS #cabinet #switchgear #switchboard #LV #electrical #distribution #retrofit #power #1kV
