LV distribution box JXF

Category:
  • Share:
Ask a Question

Description



LV distribution box JXF below 400 is a new product introduced from ABB Company, with a compact and reasonable structure, which not only replaces the basic characteristics of FXF, but also reflects the development and direction of modern electrics.

LV distribution box JXF is widely used in power system with rated voltage of 380V and

below, and frequency of 50Hz in industrial and civil construction, for power distribution, lighting distribution and automation control.

JXF waterproof panel board is a power distribution box PTXXXX series, designed and assembles into control functions according to type, specification and quantity of components.

The material for the box is cold-rolled steel plate.

Types of protection degree class: IP40, IP55, IP65.

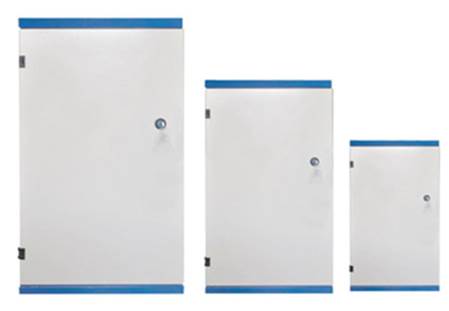

LV distribution box JXF-2

Количество просмотров 31

Parameters



Parameters and dimension JXF power distribution box PTXXXX series:

Model Height Width Depth Thickness
mm mm mm Door(mm) Body(mm) Mounting Plate(mm)
PT2215 200 200 150 1.2 1.2 2
 PT2515 250 200 150 1.2 1.2 2
PT2315 300 200 150 1.2 1.2 2
PT2320 300 200 200 1.2 1.2 2
PT25315 300 250 150 1.2 1.2 2
PT25320 300 250 200 1.2 1.2 2
PT25325 300 250 250 1.2 1.2 2
PT3315 300 300 150 1.2 1.2 2
PT3320 300 300 200 1.2 1.2 2
PT3325 300 300 250 1.2 1.2 2
PT3415 350 350 150 1.2 1.2 2
PT3420 400 300 200 1.2 1.2 2
PT3425 400 300 250 1.2 1.2 2
PT3430 400 300 300 1.2 1.2 2
PT4415 400 400 150 1.2 1.2 2
PT4420 400 400 200 1.2 1.2 2
PT4425 400 400 250 1.2 1.2 2
PT4430 400 400 300 1.2 1.2 2
PT3515 500 300 150 1.2 1.2 2
PT3520 500 300 200 1.2 1.2 2
PT3525 500 300 250 1.2 1.2 2
PT3530 500 300 300 1.2 1.2 2
PT4515 500 400 150 1.2 1.2 2
PT4520 500 400 200 1.2 1.2 2
PT4525 500 400 250 1.2 1.2 2
PT4530 500 400 300 1.2 1.2 2
PT5515 500 500 150 1.2 1.2 2
PT5520 500 500 200 1.2 1.2 2
PT5525 500 500 250 1.2 1.2 2
PT5530 500 500 300 1.2 1.2 2
PT4615 600 400 150 1.2 1.2 2
PT4620 600 400 200 1.2 1.2 2
PT4625 600 400 250 1.2 1.2 2
PT4630 600 400 300 1.2 1.2 2
PT5615 600 500 150 1.5 1.2 2
PT5620 600 500 200 1.5 1.2 2
PT5625 600 500 250 1.5 1.2 2
PT5630 600 500 300 1.5 1.2 2
PT6615 600 600 150 1.5 1.2 2
PT6620 600 600 200 1.5 1.2 2
PT6625 600 600 250 1.5 1.2 2
PT6630 600 600 300 1.5 1.2 2
PT4720 700 400 200 1.5 1.2 2
PT4730 700 400 300 1.5 1.2 2
PT5715 700 500 150 1.5 1.2 2
PT5720 700 500 200 1.5 1.2 2
PT5725 700 500 250 1.5 1.2 2
PT5730 700 500 300 1.5 1.2 2
PT6720 700 600 200 1.5 1.2 2
PT6725 700 600 250 1.5 1.2 2
PT6730 700 600 300 1.5 1.2 2
PT6820 800 600 200 1.5 1.5 2
PT6825 800 600 250 1.5 1.5 2
PT6830 800 600 300 1.5 1.5 2
PT6840 800 600 400 1.5 1.5 2
PT8820 800 800 200 1.5 1.5 2
PT8825 800 800 250 1.5 1.5 2
PT8830 800 800 300 1.5 1.5 2
PT6 1020 1000 600 200 2 1.5 2
PT6 1025 1000 600 250 2 1.5 2
PT6 1030 1000 600 300 2 1.5 2
PT7 1020 1000 700 200 2 1.5 2
PT8 1020 1000 800 200 2 1.5 2
PT8 1025 1000 800 250 2 1.5 2
PT8 1030 1000 800 300 2 1.5 2
PT8 1040 1000 800 400 2 1.5 2
PT10 1025 1000 1000 250 2 1.5 2
PT10 1030 1000 1000 300 2 1.5 2
PT6 1220 1200 600 200 2 1.5 2
PT6 1225 1200 600 250 2 1.5 2
PT6 1230 1200 600 300 2 1.5 2
PT8 1220 1200 800 200 2 1.5 2
PT8 1225 1200 800 250 2 1.5 2
PT8 1230 1200 800 300 2 1.5 2
PT10 1225 1200 1000 250 2 1.5 2
PT10 1230 1200 1000 300 2 1.5 2
PT10 1240 1200 1000 400 2 1.5 2
PT12 1225 1200 1200 250 2 1.5 2
PT12 1230 1200 1200 300 2 1.5 2
PT6 1430 1400 600 300 2 1.5 2
PT8 1430 1400 800 300 2 1.5 2
PT10 1430 1400 1000 300 2 1.5 2
PT12 1430 1400 1200 300 2 1.5 2
PT8 1640 1600 800 400 2 1.5 2
PT10 1640 1600 1000 400 2 1.5 2
Количество просмотров 31

Solutions



Construction

  • Body and door manufactured in 1.2/1.5 mm sheet steel,
  • Mounting plate with folded edge in 2.0 mm sheet steel,
  • Finished with thermosetting epoxy polyester powder coating,
  • Body and door textured finish,
  • Mounting plate in smooth finish.

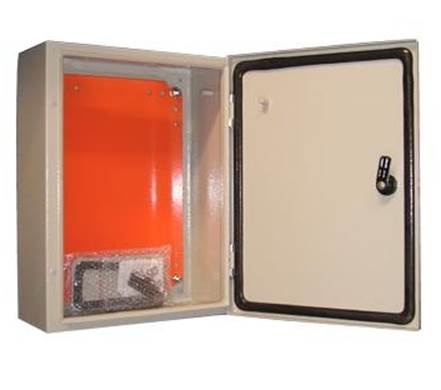

LV distribution box JXF-3

Important points of structure:

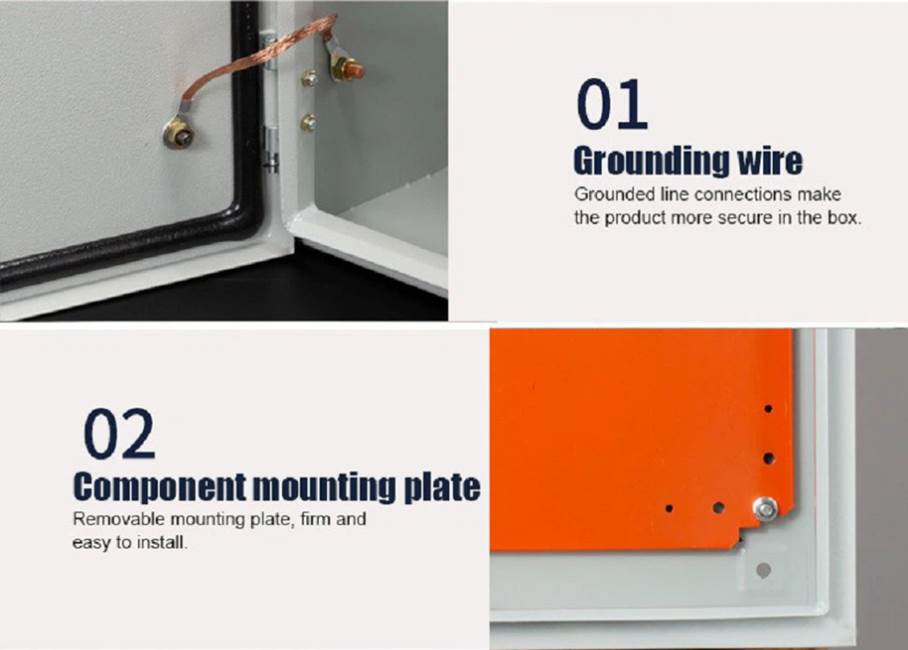

LV distribution box JXF-4

Important accessories:

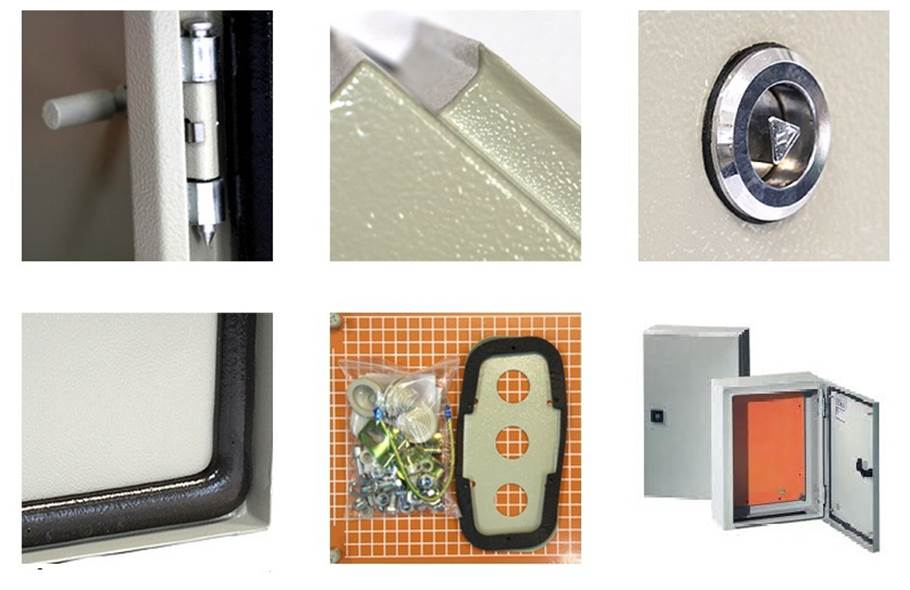

LV distribution box JXF-5
