DG-Series

Battery DG Series

Category:
  • Share:
Ask a Question

Description



Battery DG Series is Deep Cycle GEL VRLA Batteries.

Voltage class: 2V/6V/12V.

Capacity range: 26Ah~3000Ah.

Designed for frequent cyclic charge and discharge applications under extreme environment.

Suitable for solar & wind energy, UPS, telecom systems, electric power systems, control systems, golf cars, etc.

Technical Features

Battery DG (Deep Cycle GEL) series is pure GEL battery with 15~20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte.

Количество просмотров 21

Parameters



Main Technical parameters

Model Nominal Voltage Capacity Dimension Terminal
（Ah） Length Width Height Total Height
（V） mm inch mm inch mm inch mm inch
DG12-26 12 26 C20/1.75VPC 166 6.54 176 6.93 125 4.92 125 4.92 F3(M5) / F13-BP(M5)/T24(M5)
DG6-100 6 100 C20/1.75VPC 194 7.64 170 6.69 205 8.07 212 8.35 F14(M8)
DG6-150 6 150 C20/1.75VPC 260 10.24 180 7.09 245 9.65 252 9.92 F12(M8)
DG6-180 6 180 C20/1.75VPC 306 12.05 168 6.61 220 8.66 227 8.94 F12(M8)
DG6-200 6 200 C20/1.75VPC 322 12.68 177.5 6.99 226 8.90 231 9.09 F16(M8) / F14(M8)
DG6-225 6 225 C20/1.75VPC 322 12.68 177.5 6.99 226 8.90 231 9.09 F16(M8) / F14(M8)
DG6-280 6 280 C20/1.75VPC 295 11.61 178 7.01 346 13.62 351 13.82 F14(M8)
DG6-310 6 310 C20/1.75VPC 295 11.61 178 7.01 346 13.62 351 13.82 F14(M8)
DG6-335 6 335 C20/1.75VPC 295 11.61 178 7.01 346 13.62 351 13.82 F14(M8)
DG12-33 12 33 C20/1.75VPC 195 7.68 130 5.12 155 6.10 168 6.61 F7(M8) / F11(M6)
DG12-40 12 40 C20/1.75VPC 198 7.80 166 6.54 169 6.65 169 6.65 F4(M5) / F11(M6)
DG12-55 12 55 C20/1.75VPC 229 9.02 138 5.43 211 8.31 216 8.50 F15(M6) / F11(M6)
DG12-65 12 65 C20/1.75VPC 350 13.78 167 6.57 182 7.17 182 7.17 F5(M8) / F11(M6)
DG12-75 12 75 C20/1.75VPC 260 10.24 169 6.65 211 8.31 216 8.50 F15(M6) / F11(M6)
DG12-100S 12 90 C20/1.75VPC 306.5 12.07 168.5 6.63 210 8.27 215 8.46 F15(M6) / F12(M8)
DG12-100 12 100 C20/1.75VPC 328 12.91 172 6.77 215 8.46 220 8.66 F5(M8) / F12(M8)
DG12-120 12 120 C20/1.75VPC 407 16.02 177 6.97 225 8.86 225 8.86 F5(M8) / F12(M8)
DG12-134 12 134 C20/1.75VPC 340 13.39 173 6.81 280 11.02 287 11.30 F5(M8) / F12(M8)
DG12-145 12 145 C20/1.75VPC 340 13.39 173 6.81 280 11.02 287 11.30 F5(M8) / F12(M8)
DG12-150 12 150 C20/1.75VPC 483 19.02 170 6.69 241 9.49 242 9.53 F5(M8) / F12(M8)
DG12-160 12 160 C20/1.75VPC 532 20.94 207 8.15 214 8.43 219 8.62 F16(M8) / F12(M8)
DG12-180 12 180 C20/1.75VPC 532 20.94 207 8.15 214 8.43 219 8.62 F16(M8) / F12(M8)
DG12-200 12 200 C20/1.75VPC 522 20.55 240 9.45 219 8.62 224 8.82 F16(M8) / F10(M8)
DG12-225 12 225 C20/1.75VPC 522 20.55 240 9.45 219 8.62 224 8.82 F16(M8) / F10(M8)
DG12-230 12 230 C20/1.75VPC 521 20.51 269 10.59 204 8.03 209 8.23 F10(M8)
DG12-260 12 260 C20/1.75VPC 521 20.51 268 10.55 220 8.66 225 8.86 F14(M8)
FT12-55G 12 55 C20/1.75VPC 291 11.46 106 4.17 230 9.06 230 9.06 F11(M6)
FT12-90G 12 90 C20/1.75VPC 562 22.13 114 4.49 188 7.40 188 7.40 F6(M8)
FT12-100G 12 100 C20/1.75VPC 508 20.00 110 4.33 236 9.29 236 9.29 F14(M8)
FT12-105G 12 105 C20/1.75VPC 508 20.00 110 4.33 236 9.29 236 9.29 F14(M8)/F8(M6)
FT12-110G 12 110 C20/1.75VPC 410 16.14 109 4.29 285 11.22 293 11.54 F9(M8)
FT12-150G 12 150 C20/1.75VPC 565 22.24 110 4.33 288 11.34 288 11.34 F9(M8)
FT12-160G 12 160 C20/1.75VPC 565 22.24 110 4.33 288 11.34 288 11.34 F9(M8)
FT12-180G 12 180 C20/1.75VPC 560 22.05 125 4.92 316 12.44 316 12.44 F14(M8)



Model Nominal Voltage (V） Capacity Dimension Terminal
（Ah） Length Width Height Total Height
mm inch mm inch mm inch mm inch
DG2-200 2 200 C20/1.75VPC 171 6.73 111 4.37 328 12.91 340 13.39 F10(M8)
DG2-250 2 250 C20/1.75VPC 171 6.73 111 4.37 328 12.91 340 13.39 F10(M8)
DG2-300 2 300 C20/1.75VPC 170 6.69 150 5.91 330 12.99 342 13.46 F10(M8)
DG2-400 2 400 C20/1.75VPC 170 6.69 150 5.91 330 12.99 342 13.46 F10(M8)
DG2-500 2 500 C20/1.75VPC 211 8.31 172 6.77 330 12.99 342 13.46 F10(M8)
DG2-600 2 600 C20/1.75VPC 241 9.49 172 6.77 330 12.99 342 13.46 F10(M8)
DG2-800 2 800 C20/1.75VPC 301 11.85 172 6.77 330 12.99 342 13.46 F10(M8)
DG2-1000 2 1000 C20/1.75VPC 410 16.14 172 6.77 330 12.99 342 13.46 F10(M8)
DG2-1200 2 1200 C20/1.75VPC 473 18.62 172 6.77 330 12.99 342 13.46 F10(M8)
DG2-1500 2 1500 C20/1.75VPC 355 13.98 337 13.27 330 12.99 342 13.46 F10(M8)
DG2-2000 2 2000 C20/1.75VPC 476 18.74 337 13.27 330 12.99 342 13.46 F10(M8)
DG2-2500 2 2500 C20/1.75VPC 696 27.40 340 13.39 330 12.99 342 13.46 F10(M8)
DG2-3000 2 3000 C20/1.75VPC 696 27.40 340 13.39 330 12.99 342 13.46 F10(M8)
Количество просмотров 21

Solutions



Battery DG Series offers excellent recovery after deep discharge under frequent cyclic discharge use, and can deliver 400 cycles at 100% DOD. Suitable for solar, CATV, marine, RV and deep discharge UPS, communication, and telecommunication, etc.

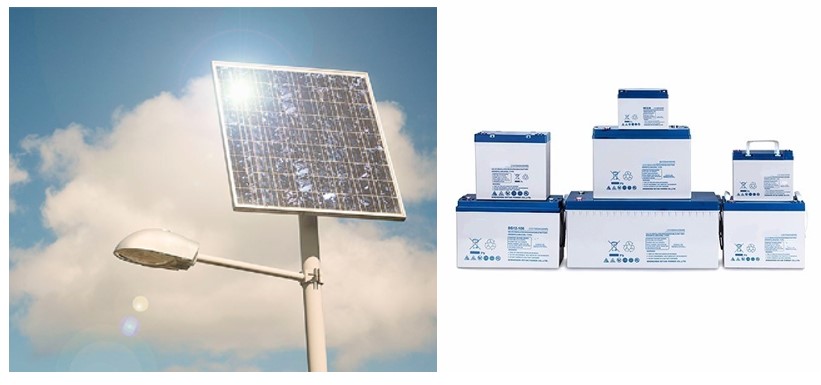

DG Series 01
