Shutter mechanisms

Shutter mechanisms

Category:
  • Share:
Ask a Question

Description



The shutter mechanism (curtain mechanism) MEC series are designed to limit the access of maintenance personnel to live parts of the cable compartment and busbar compartment from the compartment of the withdrawable element of switchgear cubicles, when the withdrawable element is in the control position or removed from the cell.

Количество просмотров 28

Parameters

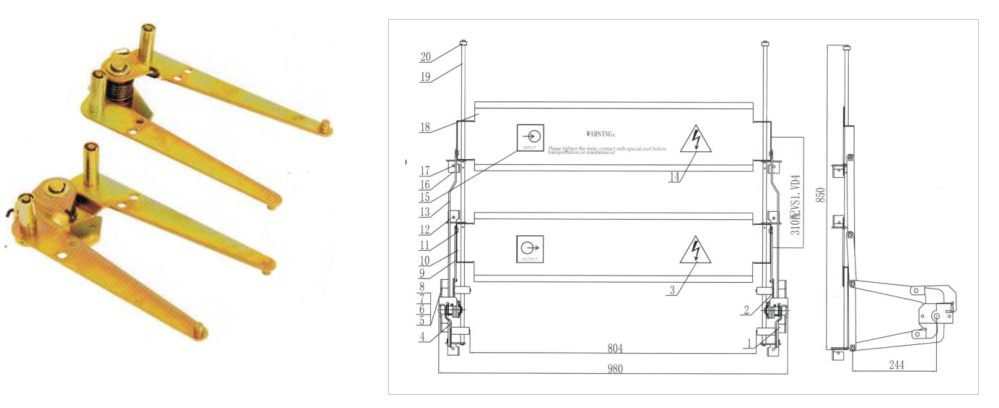

1. Shutter mechanism MEC-1600

Rated currents: I nom, A — 630…1600

Interphase distance, mm — 150…210



Can be used with switching devices:

METTZ — MVS1-12 (ZN63), MVS2-12 (ZN63e), MVS3-12 (ZN63M), MVS4-12 (ZN63Me), MVS5-12 (ZN83), MVS6-12 (ZN83e), MVS7-12 (ZN93e)

Tavrida Electric — ISM15 LD, ISM15 Shell

ABB — VD4, HD4, VM4

Schneider Electric — EasyPact, Evolis

Siemens — SION



  1. Can be equipped with curtains of non-standard size
  2. Can be equipped with curtains made of dielectric material. 3.
  3. Position of the curtain mechanism — A, the height of the curtain opening is regulated by position of the response part (actuation guide) on the rolling element and the size of compression of the rollers of the shutter mechanism.
  4. The degree of opening of the curtains can be regulated by installing the guide — C, in the additional hole for adjustment on the curtain or by adding additional holes on the rod — C.

2. Shutter mechanism MEC-2500
Rated currents: I nom, A — 2000…2500

Interphase distance, mm — 210…275

3. Shutter mechanism MEC-4000

Rated currents: I nom, A — 2000…4000

Interphase distance, mm — 210…275
