SH15-10kV Amorphous Core Oil-Immersed Transformer for Industrial Projects
The SH15-10kV oil-immersed transformer is a new-generation energy-saving distribution transformer designed for 10kV power grids. What sets this model apart is its use of an amorphous alloy core, which offers significantly lower no-load losses compared to traditional silicon steel core transformers.
This makes the SH15 series a top choice for modern industrial projects focused on energy efficiency, carbon reduction, and long-term operating cost savings.

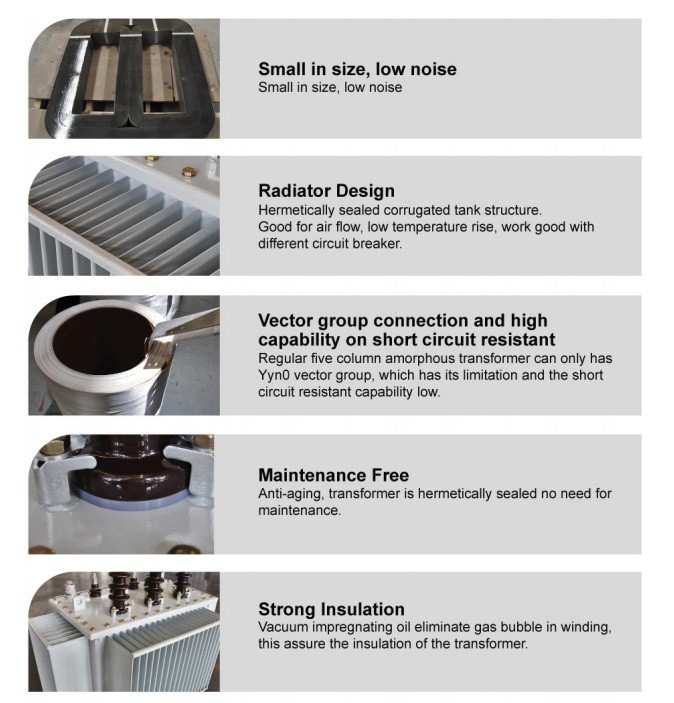

Iron core:
The three-dimensional triangle roll is intimately composed of three identical single frames. The three core posts are arranged in an equilateral triangle. The magnetic path length of the three core posts is completely the same, and the shortest. The loss of the three core posts is the same, so the three-phase magnetic circuit is balanced. The production efficiency is improved. The three-dimensional triangular wound core is the same as the planar wound core in that it is rolled on the production line to eliminate the quality fluctuations caused by manual lamination and stacking of the stacked iron core. At the same time, the body structure of the three-dimensional triangular wound iron core transformer determines that its short circuit resistance is better than that of the planar transformer.
Oil tank:
The appearance is beautiful, the transformer oil tank adopts a near-micro triangle structure, so the volume is smaller than the conventional rectangular oil tank, the structure is compact, and the appearance is beautiful.

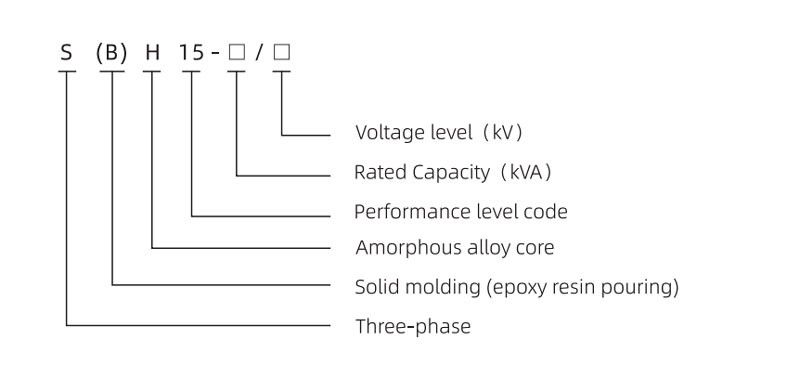

Model
