LZZBJ12-12 Current Transformer

Category:
  • Share:
Ask a Question

Description



The LZZBJ12-10kV current transformer is an advanced, epoxy resin-cast indoor current transformer designed for 10kV medium-voltage power systems. It is used for accurate current measurement, metering, and relay protection in industrial and utility power distribution networks.

With its enhanced insulation performance, multi-core capability, and compact design, the LZZBJ12 is a trusted solution for switchgear manufacturers, substations, and industrial electrical engineers looking for high accuracy and long-term reliability.

Type LZZBJ12-12  current transformer is used for metering and protective relaying purposes for installation in indoor up to 12kV rated voltage frequency 50/60Hz, the current transformer is used for metering and protective relaying action in indoor and especially is suited for using in the narrow case(fixed) ring-network switchgear.



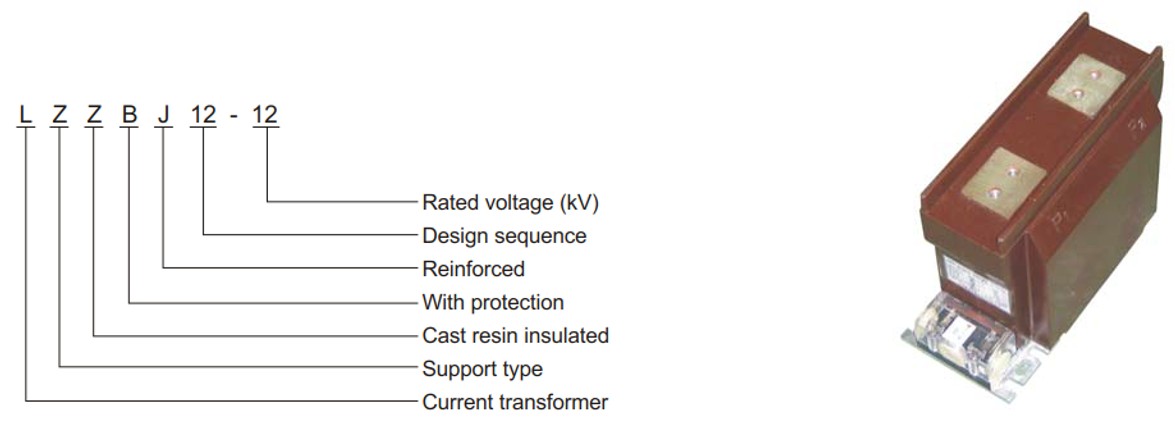

Model

LZZBJ12-12



Количество просмотров 14

Parameters



Main Technical parameters

  1. Rated insulation level: 12/42/75kV;
  2. Frequency(Hz): 50/60Hz;
  3. Rated primary current: 5-3150;
  4. Rated secondary current: 5A;
  5. Accuracy classes: 0.5/5P;
  6. Metering pole safeguard system: FS<10;
  7. 5P rated accuracy limited factor: 5P10;
  8. The measurement of partial discharge lev el is in accordance with GB7354-87 and IEC 185 Apparent partial discharge level not more than 20PC;
  9. Power factor: 0.8 (hysteresis);
  10. Rated primary current accuracy classes, rated output and short-time thermal Current see table.
Количество просмотров 14

Solutions



LZZBJ12 current transformers are integral to the safe and efficient operation of medium-voltage electrical equipment in demanding industrial environments.

✅ Common applications include:

  • Medium-voltage switchgear and RMU panels (10kV class)
  • Industrial and utility substations
  • Power monitoring, SCADA, and automation systems
  • Transformer and motor protection schemes
  • Industrial control cabinets and MCCs
  • Renewable energy substations (wind/solar)

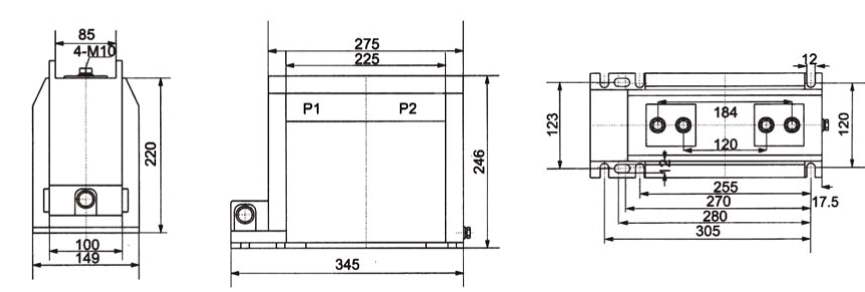

Outline dimension for LZZBJ12-12/150b/2s AS12/150b/2s



Order LZZBJ12-12 Current Transformers for Your Project

We offer LZZBJ12-12 current transformers with a full range of current ratios, accuracy classes, and mounting options to suit any industrial or utility-grade power distribution project.

  • Certified to IEC and GB standards
  • OEM and custom labeling available
  • Tested for partial discharge, insulation resistance, and ratio error
  • Ideal for panel builders, switchgear manufacturers, and EPC contractors
