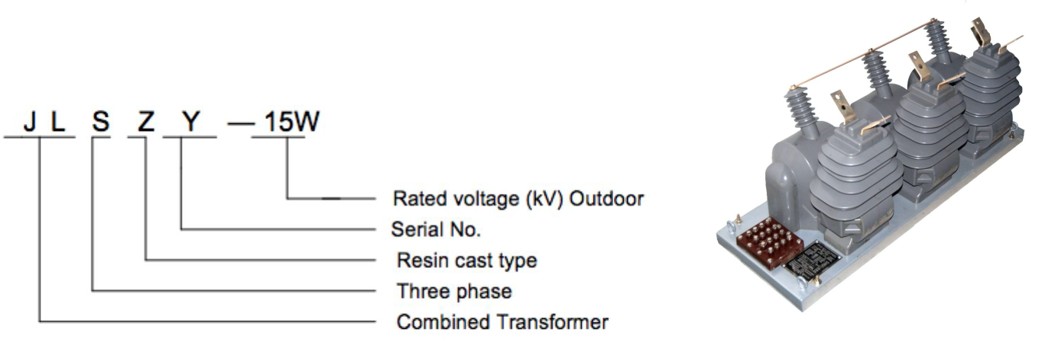

JLSZY-15(W) Combination Transformer (Metering kit) which is combined by current transformer and potential transformer. It can measure the active and reactive electricity directly for the high voltage power line.
It suits to the 50/60Hz electricity measurement for the active and reactive energy and relay protection. It can be used in the outdoor electric utility substation and power transformer substation, which can instead of the oil-immersed type combined transformer.
(1) The rated voltage: 15/42/95kV (please indicate it if it need BIL110kV or BIL150kV);
(2) Accuracy class: CT: 0.2s, 0.5s, 0.2; PT: 0.2, 0.5
(3) Standard:
Instrument transformers — Part 1: Current transformers (IEC 60044-1:2002)
Instrument transformers — Part 2: Potential transformers (IEC 60044-3:2002)
Instrument transformers — Part 3: Combined transformers (IEC 60044-3:2002)
(4) Rated frequency: 50Hz or 60Hz;

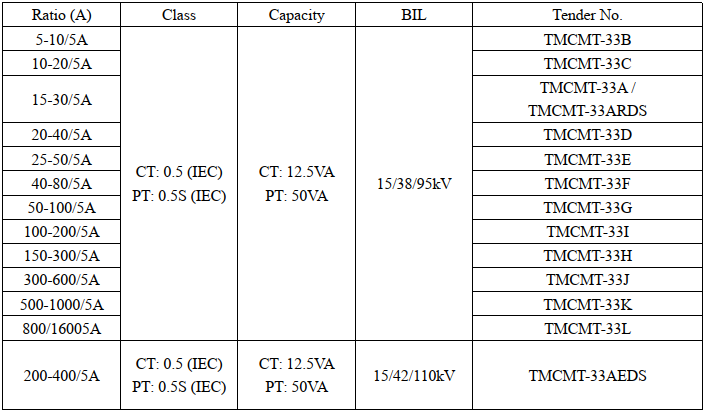

(5) Technical data
We offer current and voltage transformers with a full range of current ratios, accuracy classes, and mounting options to suit any industrial or utility-grade power distribution project.
