Description



Industrial plugs and sockets are heavy-duty electrical connectors designed to provide safe, secure, and reliable power connections in industrial and commercial power systems. Unlike standard domestic connectors, industrial-grade plugs and sockets are built to handle higher voltages, larger currents, and harsh environmental conditions.

Used in low-voltage (LV) and medium-voltage (MV) systems, these devices ensure quick connect/disconnect capability, IP-rated protection, and long-term electrical safety in demanding applications such as factories, data centers, power plants, shipyards, and construction sites.

METTZ Group provides a variety of LV plugs, sockets and connectors for
various occasions.

Common features: simple operation, safe and reliable, prolonged & durable.

Industrial Plugs and Sockets

Parameters

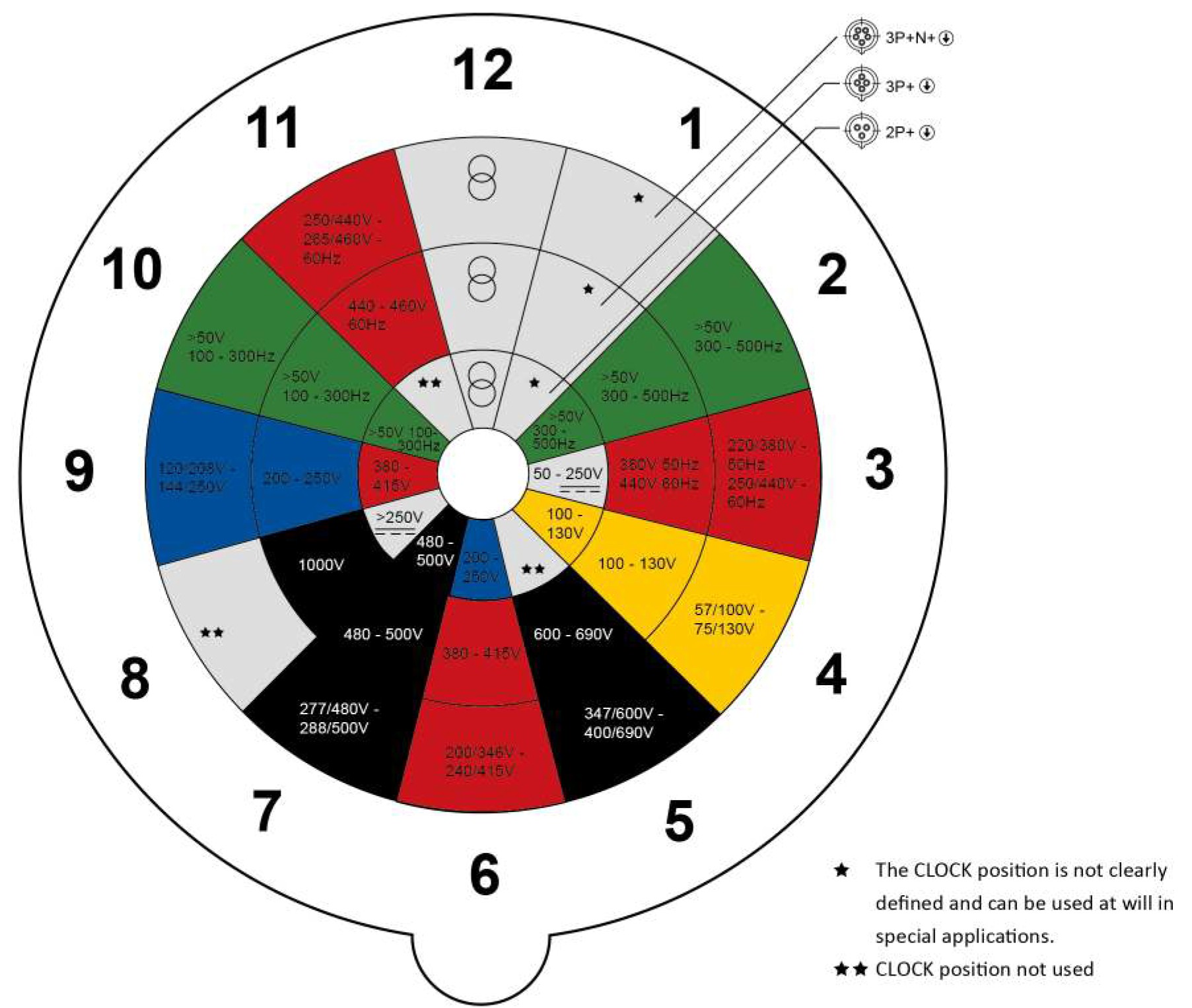

The CLOCK position is according to EN/IEC 60309-2:1999 and GB/T 11919-200111918-2001

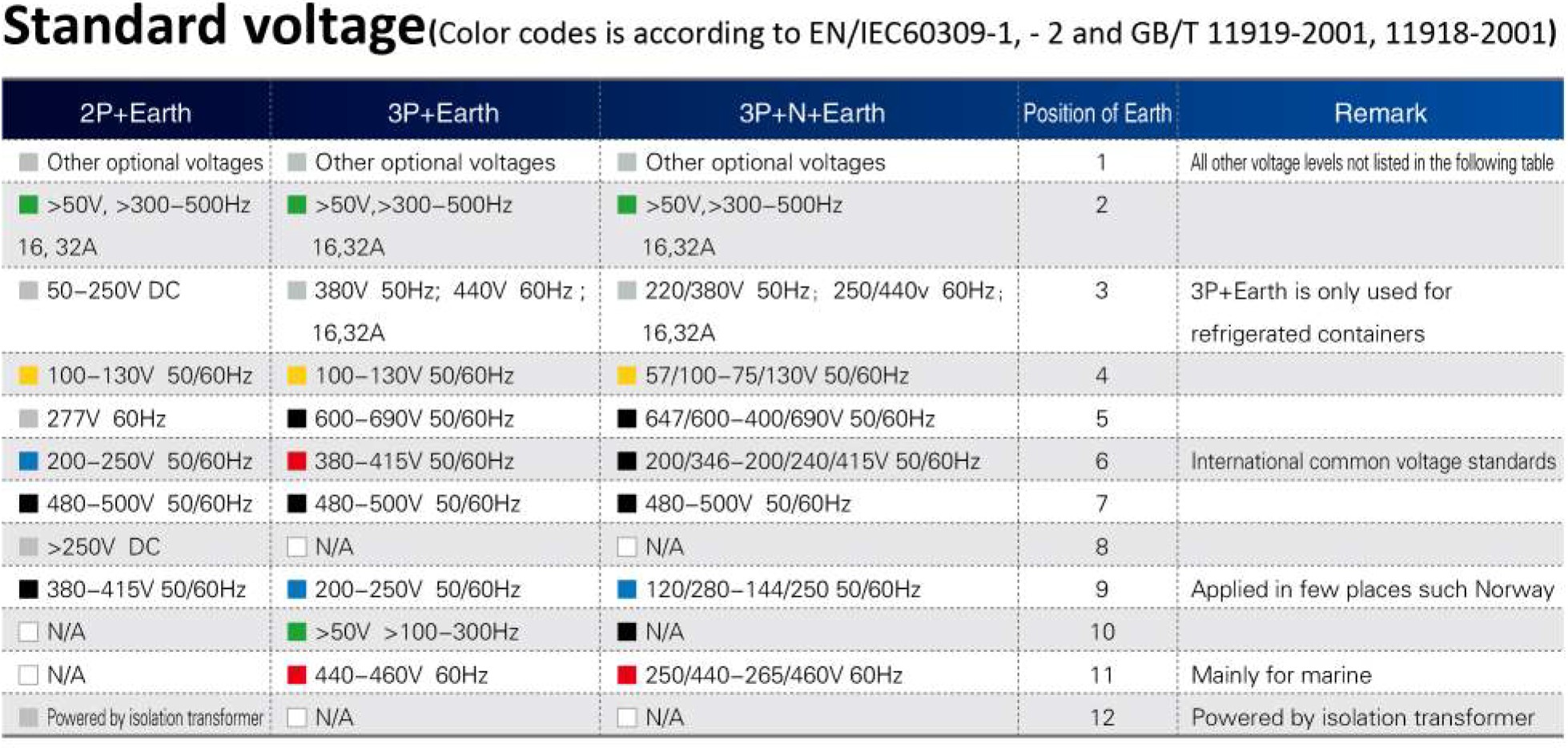

The distribution of grounding points of products with different voltages and frequencies is shown in the figure. Each color corresponds to the corresponding rated voltage.

Industrial Plugs and Sockets

Solutions

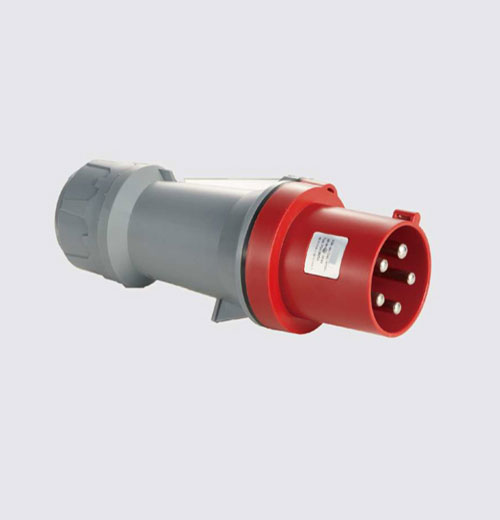

Standard Plugs

Industrial Plugs and Sockets

Industrial Plugs and Sockets

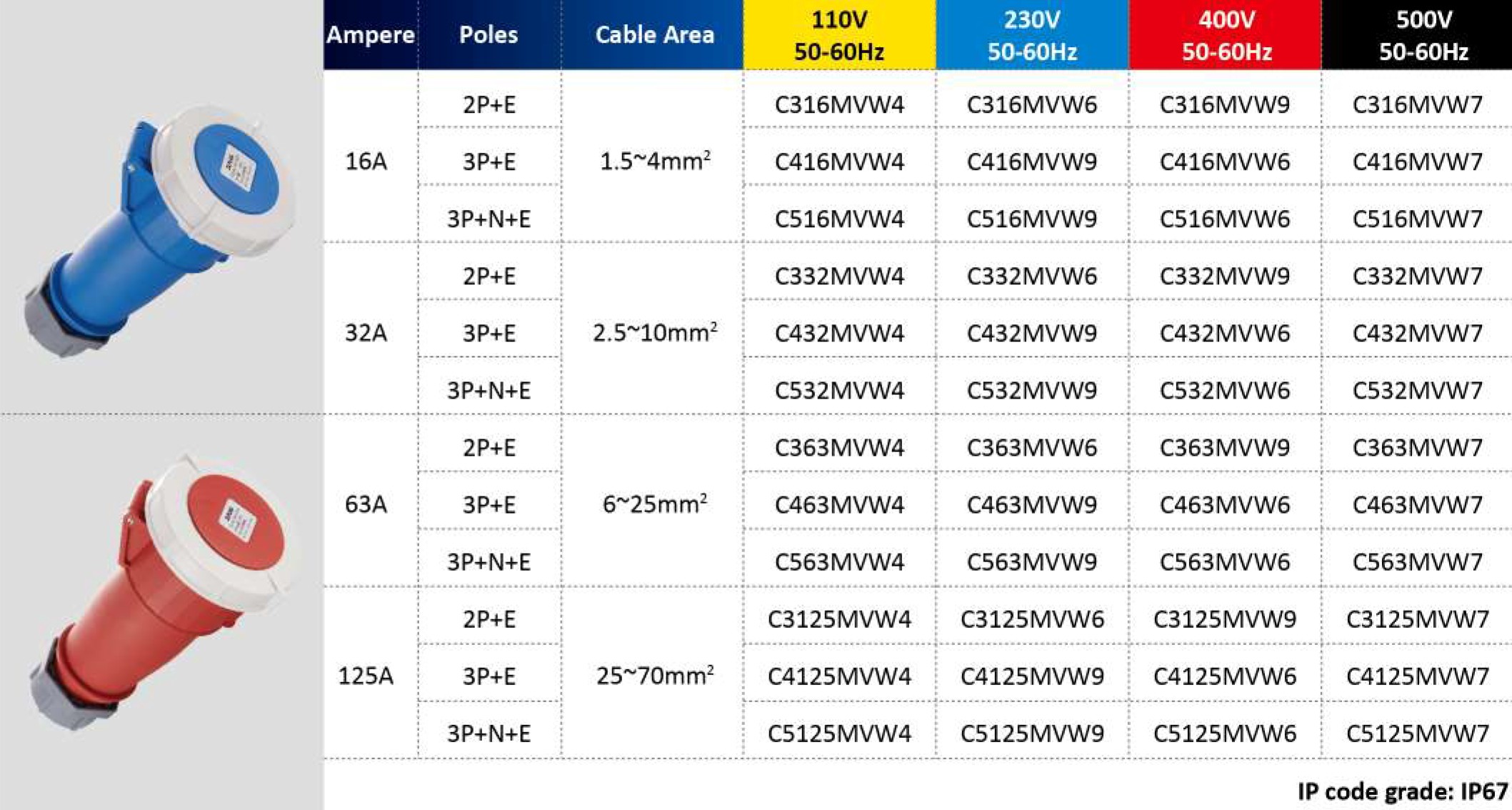

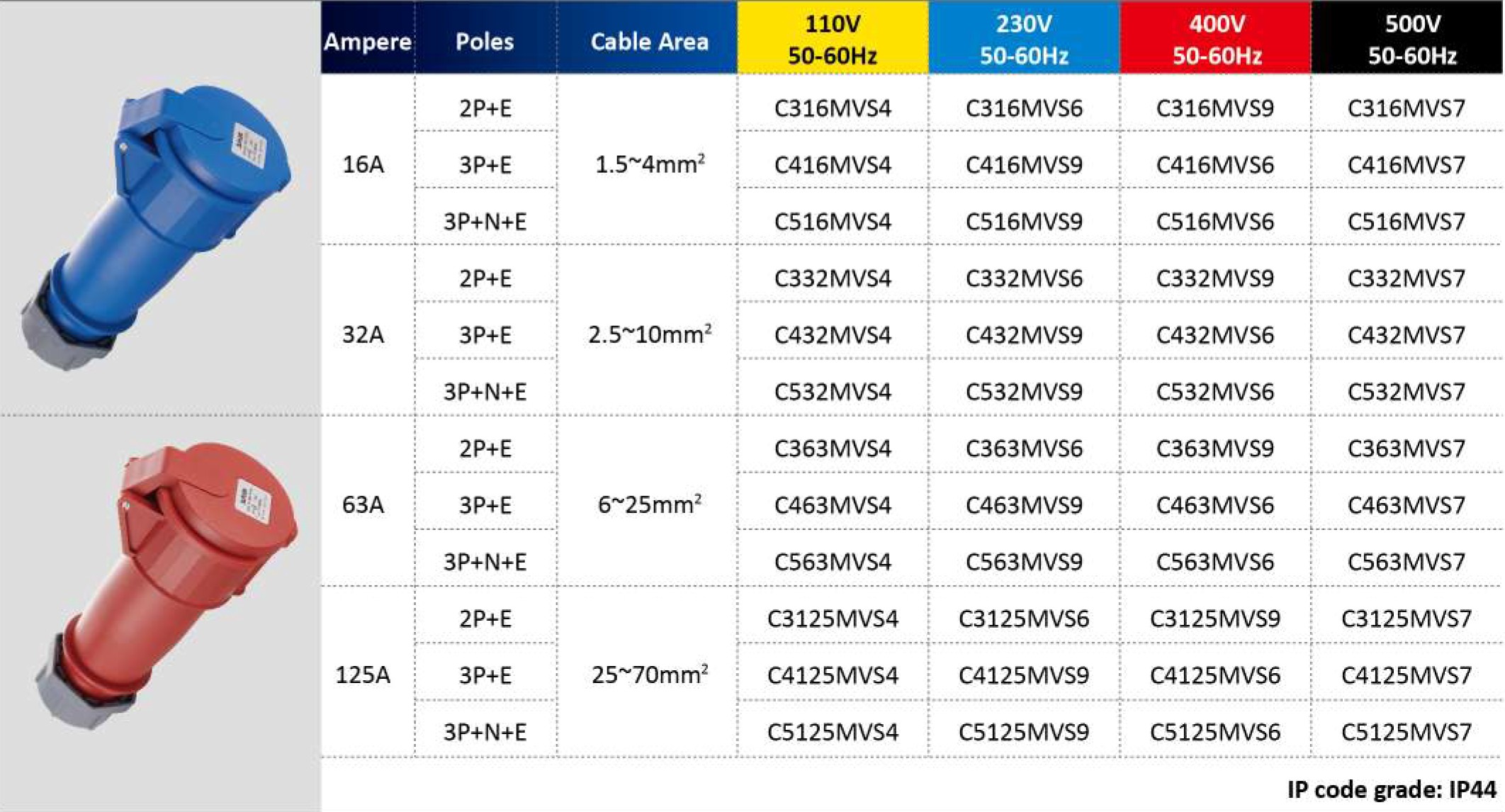

Connectors

Industrial Plugs and Sockets

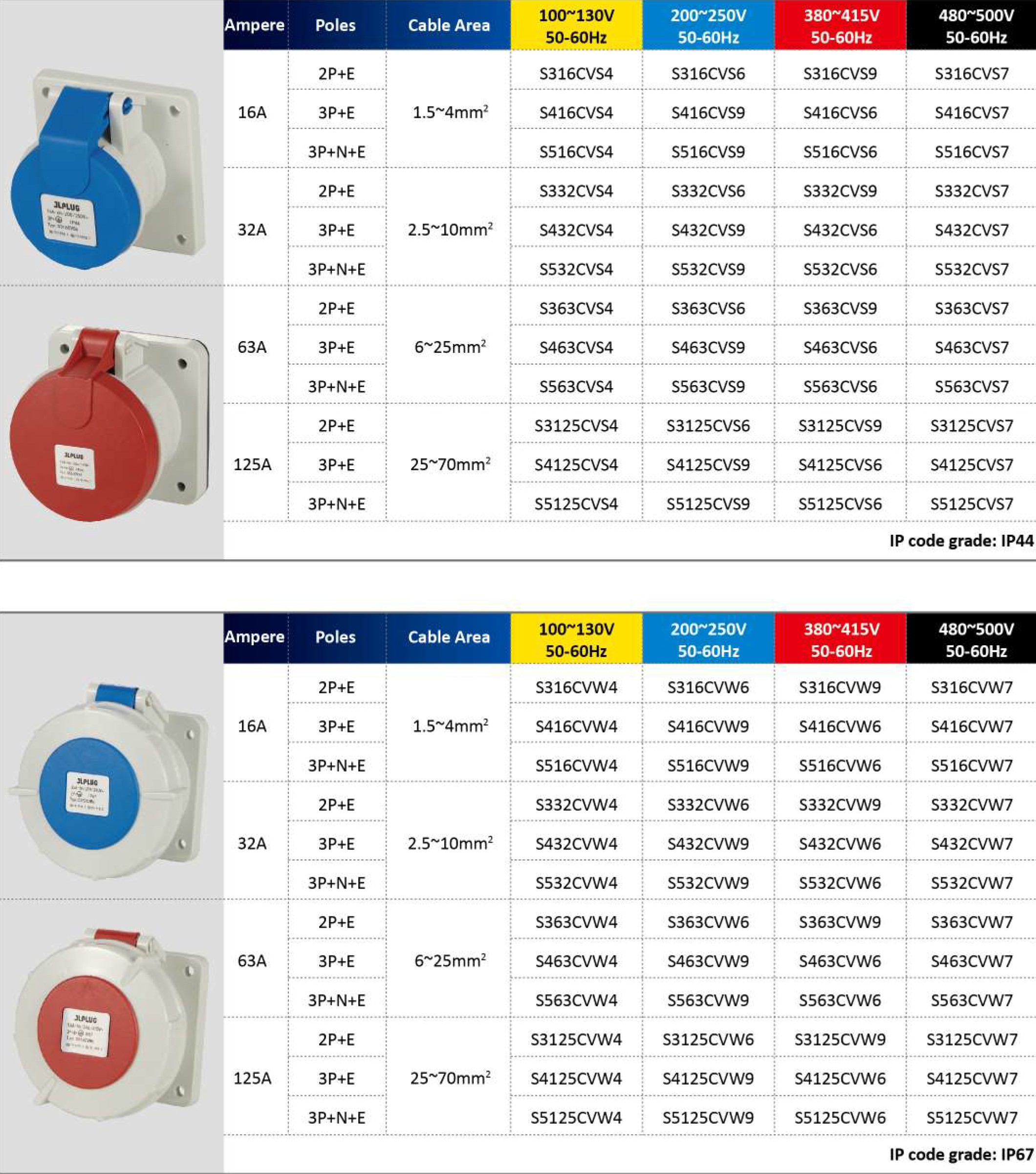

Straight sockets

Industrial Plugs and Sockets

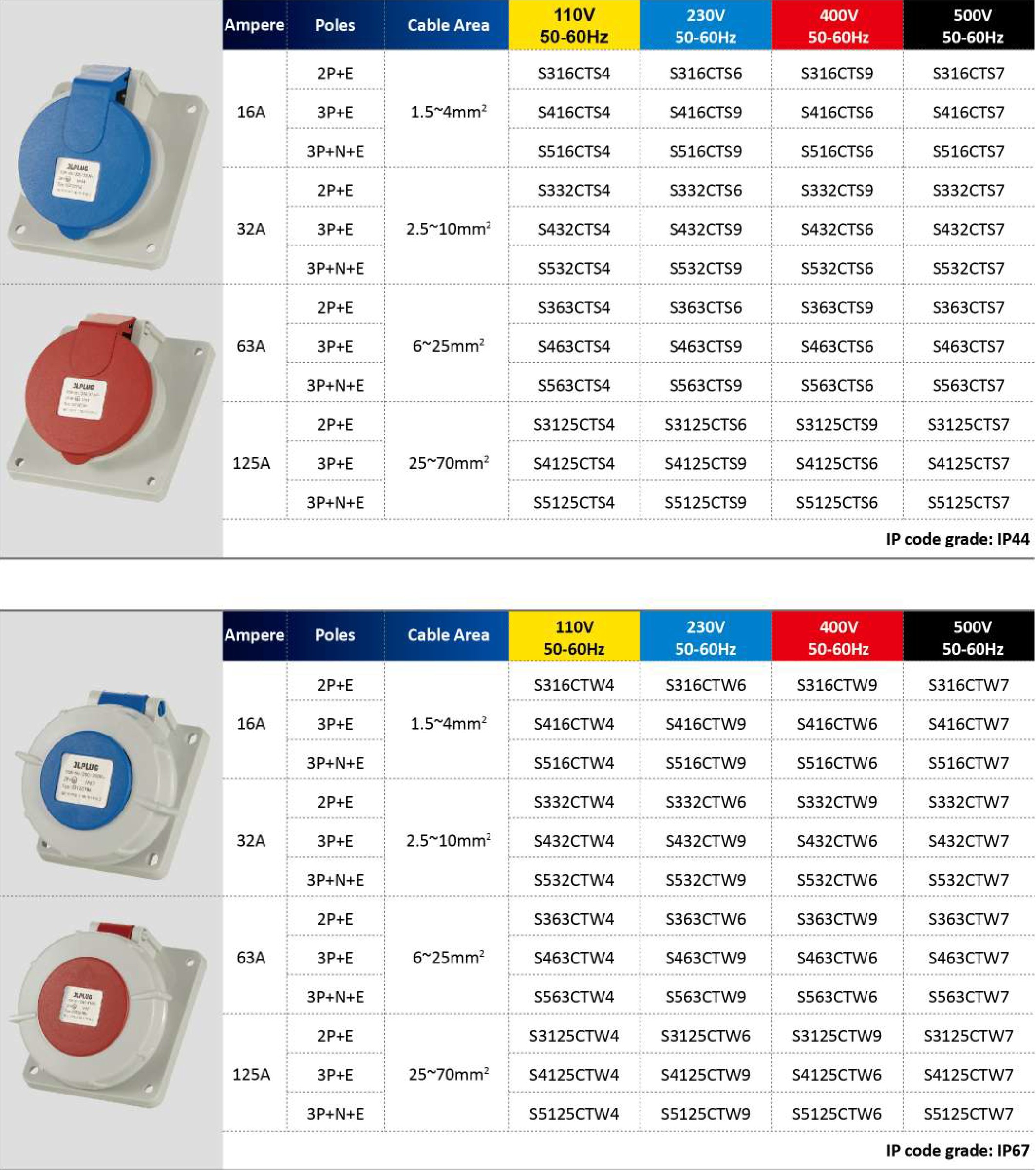

Inclination sockets

Industrial Plugs and Sockets

Common applications:

  • Factory floor machinery and production equipment
  • Construction site generators and welding units
  • Container ports and shipyard cranes
  • Data centers and backup power systems
  • Outdoor event power distribution
  • Renewable energy system connections (solar/wind inverters)
  • Mining and oil & gas electrical panels



Why Use Industrial Plugs and Sockets in Electrical Power Systems?

1. Safety and Code Compliance

Industrial plugs and sockets are designed with grounding protection, IP sealing, and flame-retardant materials, reducing the risk of electric shock, short circuits, or fire.

2. High Performance in Demanding Conditions

These connectors are engineered for dusty, wet, and high-temperature environments, ensuring uninterrupted power in even the most extreme conditions.

3. Time-Saving and Flexible Connections

Quick-disconnect functionality makes equipment servicing and reconfiguration faster and safer than hardwired alternatives.

4. Long-Term Durability

Built to withstand mechanical stress, UV exposure, and corrosive agents, industrial plugs and sockets offer years of trouble-free operation.

Industrial vs Domestic Plugs and Sockets

FeatureIndustrial Plug & SocketDomestic Plug & Socket
Voltage & Current RatingUp to 690V / 125ATypically 230V / 16A
DurabilityHigh impact and weather resistanceBasic plastic housing
IP ProtectionIP44 / IP67IP20 (minimal)
Safety FeaturesMechanical interlocks, color codingBasic contact insulation
EnvironmentFactories, outdoor, industrial zonesIndoor residential use only

Industrial plugs and sockets are essential in commercial and utility environments where reliability, safety, and capacity are non-negotiable.

Why Choose Our Industrial Plugs and Sockets?

  • Full range of voltages and current capacities
  • IP67 waterproof plugs for outdoor use
  • Interlocked and lockable designs for critical systems
  • Certified to IEC, EN, UL, and GB standards
  • Suitable for temporary, mobile, and fixed power connections



Order Industrial Plugs and Sockets for Your Power System

We offer a complete range of industrial-grade plugs, sockets, connectors, and interlocks for LV and MV power systems. Designed for heavy-duty performance and compliance with global standards, our products are trusted by utilities, EPCs, manufacturers, and facility operators worldwide.

  • Available in 16A to 125A, up to 690V
  • IP44, IP67, and explosion-proof variants
  • Fast delivery for large-scale and urgent projects
  • Technical support and customized solutions available.
