RT-Series

Battery RT Series

Category:
  • Share:
Ask a Question

Description

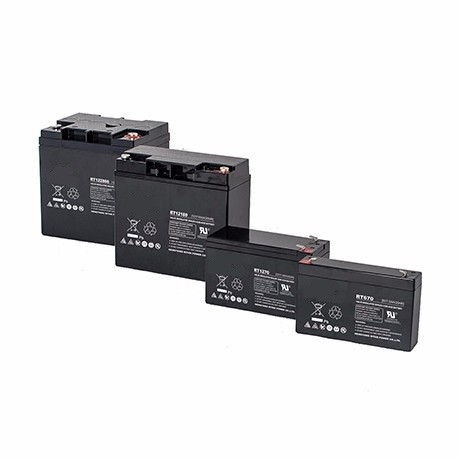

Battery RT Series is AGM VRLA Batteries from 1.3Ah to 28Ah

Voltage class:  6V/12V

Capacity range: 1.3Ah~28Ah



Advantages:

Long design life

Low self-discharge rate

Good high rate discharge performance

Wide operation temperature range

Application: small UPS, emergency light, security systems, toys, medical, etc.



Technical Features

RT series is a general-purpose battery with 6~8 years design life in float service. It meets with IEC and JIS standards .With up-dated AGM valve regulated technology and high purity raw materials; the RT series battery has reliable standby service life.
It is suitable for UPS/EPS, medical equipment, emergency light and security systems applications.

Количество просмотров 13

Parameters



Main Technical parameters

Model Nominal Voltage Capacity Dimension Terminal
C20/1.75VPC Ah Length Width Height Total Height
（V） mm inch mm inch mm inch mm inch
RT613 6 1.3 97 3.82 24 0.94 52 2.05 58 2.28 F1
RT628 6 2.8 66.5 2.62 34 1.34 97 3.82 103 4.06 F1
RT632 6 3.2 134 5.28 34 1.34 60 2.36 66 2.60 F1
RT640 6 4 70 2.76 47 1.85 99 3.90 105 4.13 F1
RT645 6 4.5 70 2.76 47 1.85 99 3.90 105 4.13 F1
RT650 6 5 70 2.76 47 1.85 99 3.90 105 4.13 F1/F2
RT670 6 7 151 5.94 34 1.34 94 3.70 100 3.94 F1/F2
RT680 6 8 151 5.94 34 1.34 94 3.70 100 3.94 F1/F2
RT6100 6 10 150 5.91 50 1.97 93 3.66 99 3.90 F1/F2
RT6120 6 12 150 5.91 50 1.97 93 3.66 99 3.90 F1/F2
RT1213 12 1.3 98 3.86 43.5 1.71 53 2.09 59 2.32 F1
RT1223 12 2.3 177 6.97 35 1.38 62 2.44 68 2.68 F1
RT1232 12 3.2 134 5.28 67 2.64 60 2.36 66 2.60 F1
RT1240 12 4 90 3.54 70 2.76 101 3.98 107 4.21 F1/F2
RT1245 12 4.5 90 3.54 70 2.76 101 3.98 107 4.21 F1/F2
RT1245U 12 4.5 151 5.94 65 2.56 94 3.70 100 3.94 F1/F2
RT1250 12 5 90 3.54 70 2.76 101 3.98 107 4.21 F1/F2
RT1250B 12 5 151 5.94 50 1.97 95 3.74 101 3.98 F1/F2
RT1270 12 7 151 5.94 65 2.56 94 3.70 100 3.94 F1/F2
RT1272 12 7 151 5.94 65 2.56 94 3.70 100 3.94 F1/F2
RT1280 12 8 151 5.94 65 2.56 94 3.70 100 3.94 F1/F2
RT1290EP 12 9 151 5.94 65 2.56 94 3.70 100 3.94 F1/F2
RT1290 12 9 151 5.94 65 2.56 94 3.70 100 3.94 F1/F2
RT1290S 12 9 151 5.94 65 2.56 111 4.37 117 4.61 F1/F2
RT12100S 12 10 151 5.94 65 2.56 111 4.37 117 4.61 F1/F2
RT12100 12 10 151 5.94 98 3.86 95 3.74 101 3.98 F1/F2
RT12120 12 12 151 5.94 98 3.86 95 3.74 101 3.98 F1/F2
RT12120A 12 12 151 5.94 98 3.86 95 3.74 101 3.98 F1/F2
RT12180 12 18 181 7.13 77 3.03 167 6.57 167 6.57 F3(M5) / F13-BP(M5)
RT12200 12 20 181 7.13 77 3.03 167 6.57 167 6.57 F3(M5) / F13-BP(M5)
RT12220 12 22 181 7.13 77 3.03 167 6.57 167 6.57 F3(M5) / F13-BP(M5)
RT12240 12 24 166 6.54 176 6.93 125 4.92 125 4.92 F3(M5) / F13-BP(M5)
RT12260 12 26 166 6.54 176 6.93 125 4.92 125 4.92 F3(M5) / F13-BP(M5)
RT12240S 12 24 165 6.50 125 4.92 174 6.85 174 6.85 T28(M5)/ F11(M6)
RT12280 12 28 166 6.54 176 6.93 125 4.92 125 4.92 F3(M5) / F13-BP(M5)/T24(M5)
RT12260S 12 26 165 6.50 125 4.92 174 6.85 174 6.85 F7(M8) / F11(M6)
RT12280S 12 28 165 6.50 125 4.92 174 6.85 174 6.85 F7(M8) / F11(M6)
Количество просмотров 13

Solutions



General-purpose battery with 6-8 years design life.

RT-Series

RT series is a battery with 6-8 years design life in float service. It meets with IEC and JIS standards.



With up-dated AGM valve regulated technology and high purity raw materials, the RT series battery has reliable standby service life.



It is suitable for UPS/EPS, medical equipment, emergency light and security systems applications.

METTZ Group stands as a consortium of Chinese electrical firms, renowned for its expertise in manufacturing electrical equipment. We are specialized in crafting a comprehensive suite of transmission and distribution equipment, covering a wide voltage range from 0.4 to 40.5 kV. Our commitment lies in delivering reliable and stable products to our clientele, encompassing vacuum circuit breakers (VCB), gas-insulated switchgear modular units (RMU), solid insulated switchgear (SIS) panels, air insulated switchgear (AIS) panels, and dry compressed air insulated switchgear panels (DIS).

Since our inception, METTZ Group has been at the forefront of adopting international cutting-edge technologies and equipment. We pride ourselves on our extensive collaboration and dialogue with leading experts in the electrical technology sector, both within China and internationally. Our offerings are tailored to meet the specific needs of our clients, including Original Equipment Manufacturer (OEM) services, customization of products to unique parameters and dimensions, all in alignment with our customers’ specifications.

METTZ Group is dedicated to innovation, quality, and customer satisfaction, ensuring that we remain a preferred partner for electrical equipment solutions worldwide.
