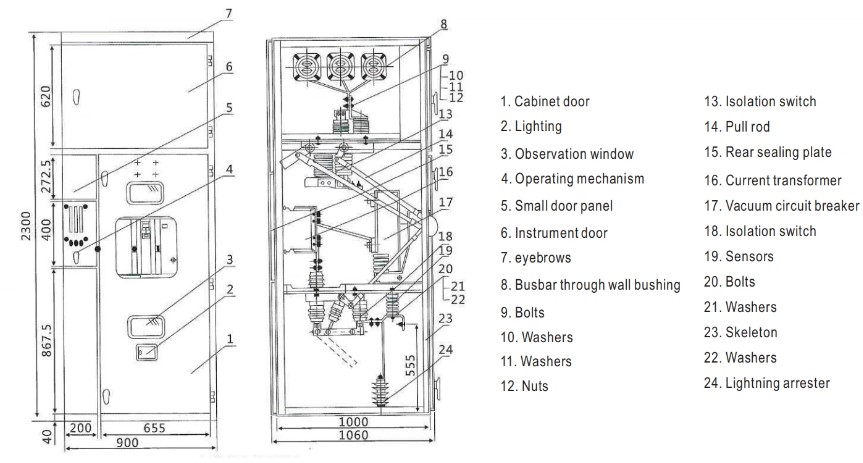

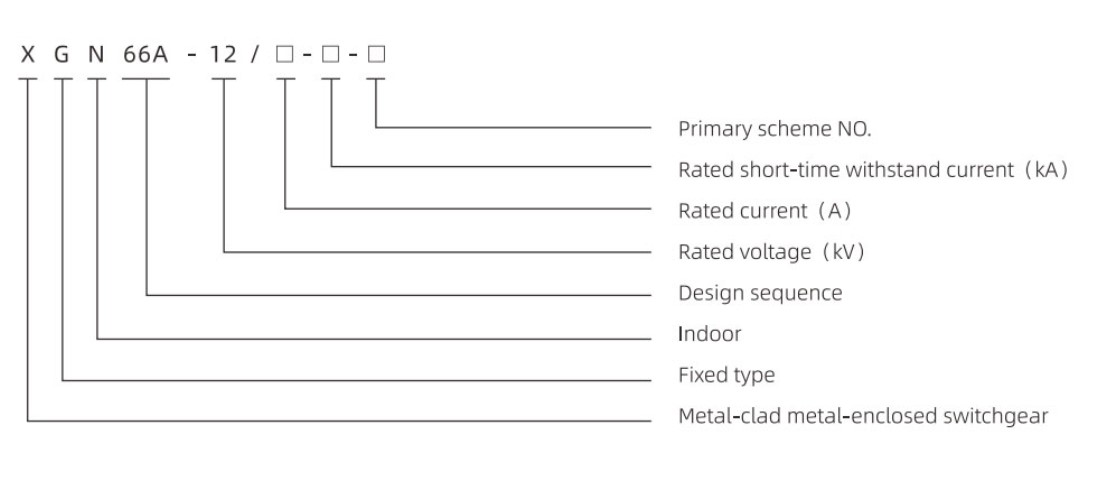

XGN66-12 fixed-type closed switchgear is a high-voltage electrical product of our company, in line with requirements of national standards GB3906 AC metal-enclosed switchgear, Electric Department’s DL T404 “ordering technology conditions of indoor AC high-voltage switchgear”, and also meets the international standard IEC62271 “requirements of AC metal-enclosed switchgear and control equipment of 1KV above 52KV”
| Item | Unit | Data | |
| Rated voltage | KV | 3.6, 7.2, 12 | |
| Rated insulation level | 1min.P.F. withstand voltage (phases to ground/gaps) | KV | 42/48 |
| Lightning impulse withstand voltage (phases to ground/gaps) | KV | 75/85 | |
| Rated frequency | Hz | 50/60 | |
| Rated current | A | 630, 1250, 1600, 2000, 2500, 3150, 4000, 5000 | |
| Rated short-time withstand current (4s) | KA | 16, 20, 25, 31.5, 40, 50 | |
| Rated peak withstand current※ | KA | 40, 50, 63, 80, 100, 125 | |
| Protection class | IP2X | ||
| Outline dimension (width×depth×height) | mm | 900(1100)×1000×2300 | |
| Weight | kg | 800-1100 | |
XGN66-12 series switchgear panel is a MV air-insulated switchgear (AIS) for primary distribution, with vacuum circuit-breaker has been designed for the various operating requirements in public and industrial medium-voltage distribution systems.
It is small, only the common switch cabinet, the circuit breaker with high reliability, good performance, five anti-interlock, reliable, and simple.
