XGN2-12 box- type fixed AC metal-enclosed switchgear is suitable for three-phase AC single bus with rated voltage of 3.6-12kV, 50Hz, rated current of 630A-3150A, double bus, single bus with bypass system, for acceptance and distribution of power. It can meet the use requirements of various types of power plants, substations and industrial and mining enterprises.

This product complies with the national standard GB3906 «3-35kv AC metal-enclosed switchgear», IEC298 «AC metal-enclosed switchgear and control equipment», and DU/T402, DL/T404 standard, and meets the «five anti» lockout requirements.

Model description:

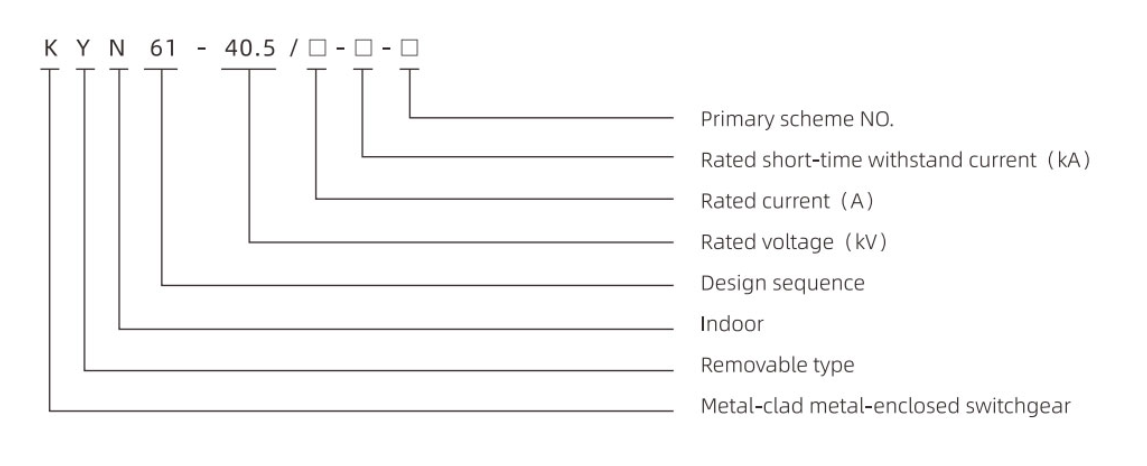

Air-insulated-switchgear-KYN61-40-1

Количество просмотров 26

Parameters



Main parameters:

Item Unit Data
Rated voltage KV 3.6, 7.2, 12
Rated insulation level 1min.P.F. withstand voltage
(phases to ground/gaps)		 KV 42/48
Lightning impulse withstand voltage
(phases to ground/gaps)		 KV 75/85
Rated frequency Hz 50/60
Rated current A 630, 1250, 1600, 2000, 2500, 3150, 4000, 5000
Rated short-time withstand current (4s) KA 16, 20, 25, 31.5, 40, 50
Rated peak withstand current※ KA 40, 50, 63, 80, 100, 125
Protection class IP2X
Outline dimension (width×depth×height) mm 900(1100)×1000×2300
Weight kg 800-1100



Количество просмотров 26

Solutions



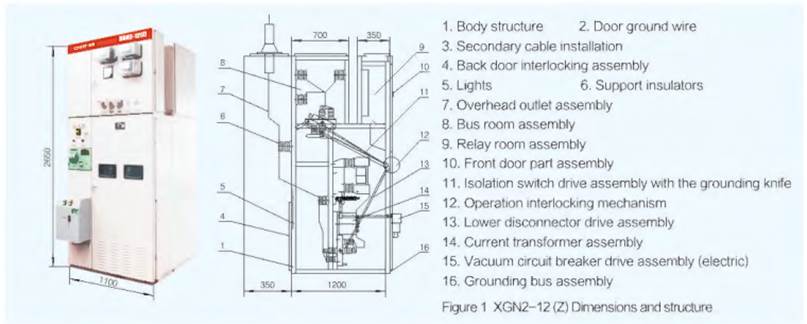

Air-insulated-switchgear-XGN2-12-2

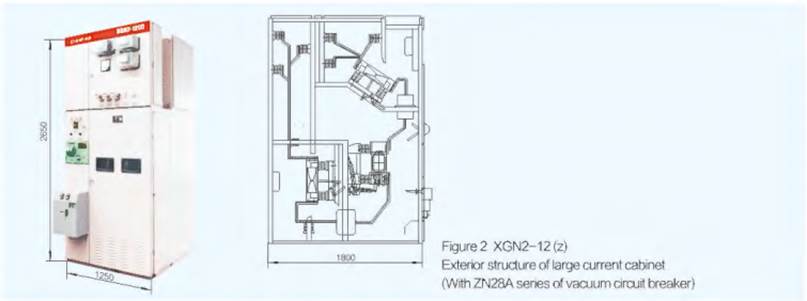

Air-insulated-switchgear-XGN2-12-3

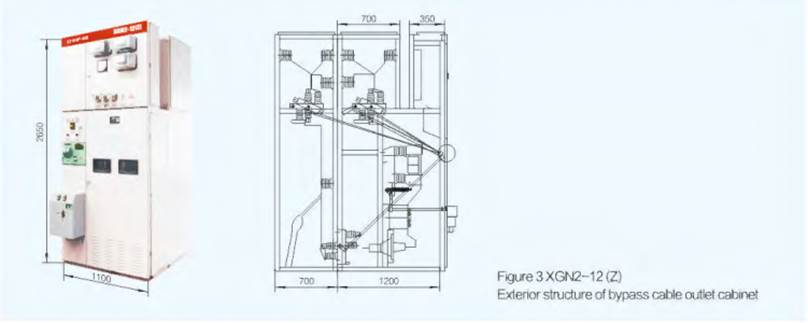

Air-insulated-switchgear-XGN2-12-4

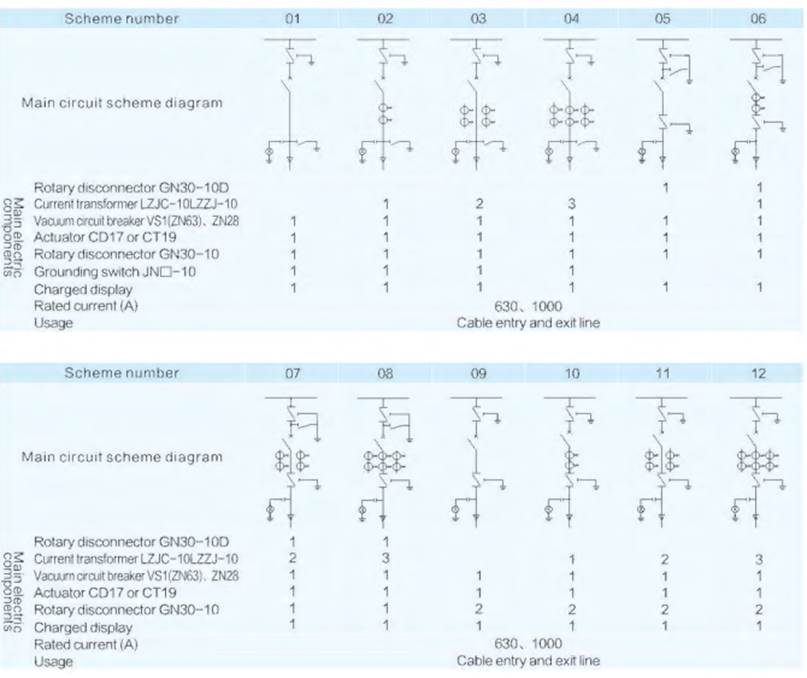

Main circuit plans:

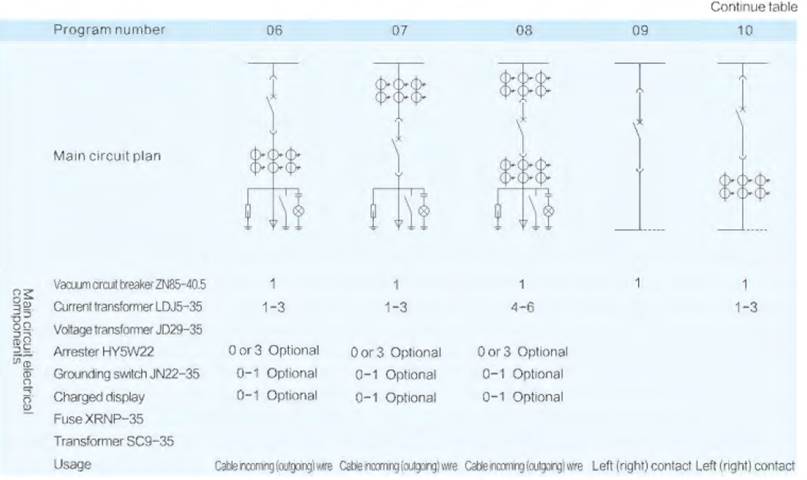

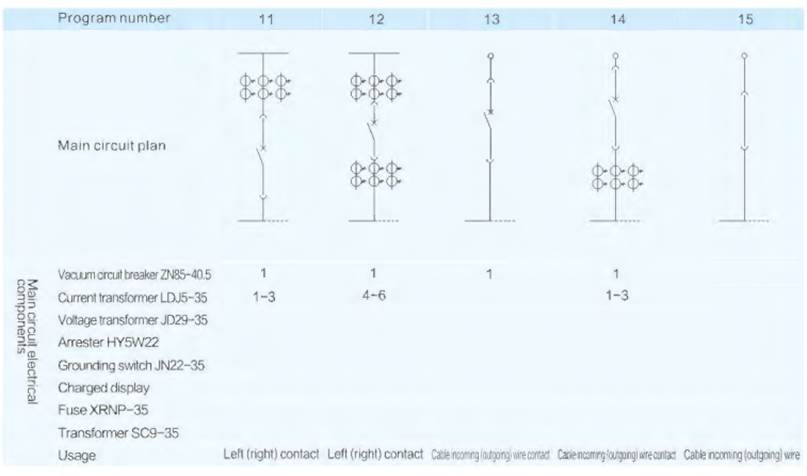

Air-insulated-switchgear-XGN2-12-5 Air-insulated-switchgear-XGN2-12-6

Compared with the traditional SF6 gas insulated switchgear, the biggest advantage of air-insulated switchgear is its more attractive environmental protection performance. It uses dry air instead of traditional SF6, N2 and so on.
