CKG3-12 Vacuum Contactor 3p

CKG3-12 Vacuum Contactor 3 polesis suitable for an AC 50-60 Hz electric power system, with highest operating voltage of 12 kV, for direct or remote on-off control of the main circuit.

Especially suitable for controlling of frequently operated of the motor, or other loads. It features of reliability, long lifetime, less maintenance, and safety. It has proven the very obvious economic benefit with this kind of product to replace the conventional products.

This series of vacuum contactors main used below the rated current from 160A-1600A power network systems for remote making and breaking and frequent starting and control of AC motors, transformers and capacitor banks and other occasions.

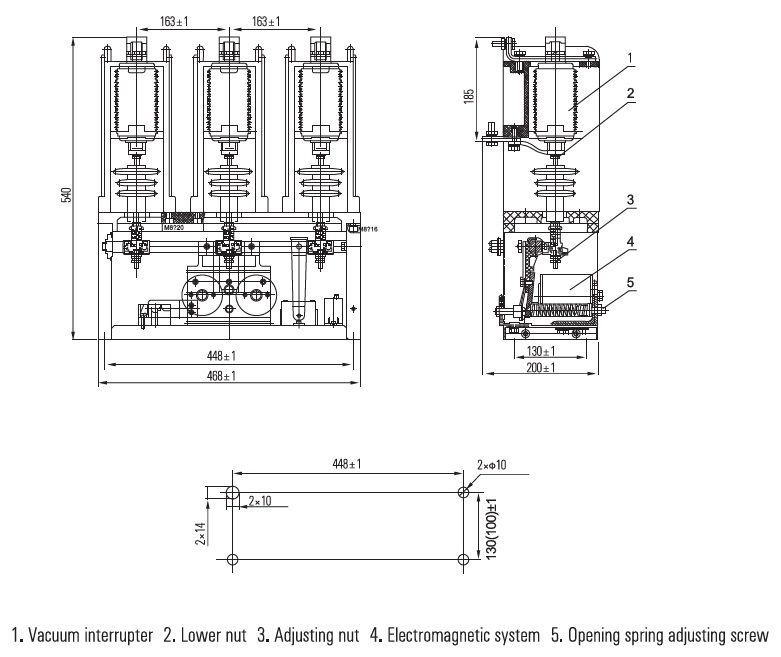

Main Technical Parameters

                         Model / Tech. parameters

160/12KV

250/12KV

400/12KV

630/12KV

800/12KV

Main circuit rated voltage (kV)

12

12

12

12

12

Main circuit rated current (A)

160

250

400

630

800

Main circuit making capacity
(A/100 times)

1600

2500

4000

6300

8000

Main circuit break-make
ability (A/25 times)

1280

2000

3200

5000

6000

Maximum break ability (A/3 times)

3200

3200

4500

6300

8000

Mechanical life (times)

100 0000

100 0000

100 0000

100 0000

100 0000

Electricity life AC3 (times)

25 0000

25 0000

25 0000

25 0000

25 0000

Engineering lock life (times)

10 0000

10 0000

10 0000

10 0000

10 0000

Power-frequency withstand voltage
for main circuit (fracture) (kV)

42

42

42

42

42

Phase-phase phase - to current withstand voltage (kV)

42

42

42

42

42

Lightning impulse withstand voltage (kV)

75

75

75

75

75

Rated operate frequency (times/h)

300

300

300

300

300

Engineering lock operate frequency (times/h)

30

30

30

30

30

Terminal pressure(N)

>100

>100

>100

>100

>100

Clearance between open contacts (mm)

6±0.5

6±0.5

6±0.5

6±0.5

6±0.5

Over travel (mm)

1.8±0.5

1.8±0.5

1.8±0.5

1.8±0.5

1.8±0.5

Main circuit electric resistance ( μΩ)

30

30

30

30

30

Secondary control voltage (V)

AC or DC: 110, 220, 380 or can be customized

Please state the following when placing the order:

  1. Title, model/specification of the product;
  2. Rated voltage, rated current and rated control voltage;
  3. Quantity of product and spare parts;
  4. Other special requirements.

You can asking Data Sheet List before order by e-mail: This email address is being protected from spambots. You need JavaScript enabled to view it.  or This email address is being protected from spambots. You need JavaScript enabled to view it.
