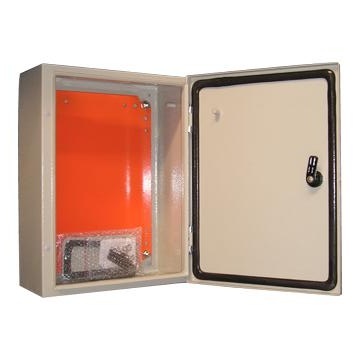

JXF Waterproof panel board

JXF Waterproof panel board is a power distribution box designed and assembles into control functions according to type, specification and quantity of components. The material for the box is cold-rolled steel plate. Types of protection degree class: IP40, IP55, IP65.

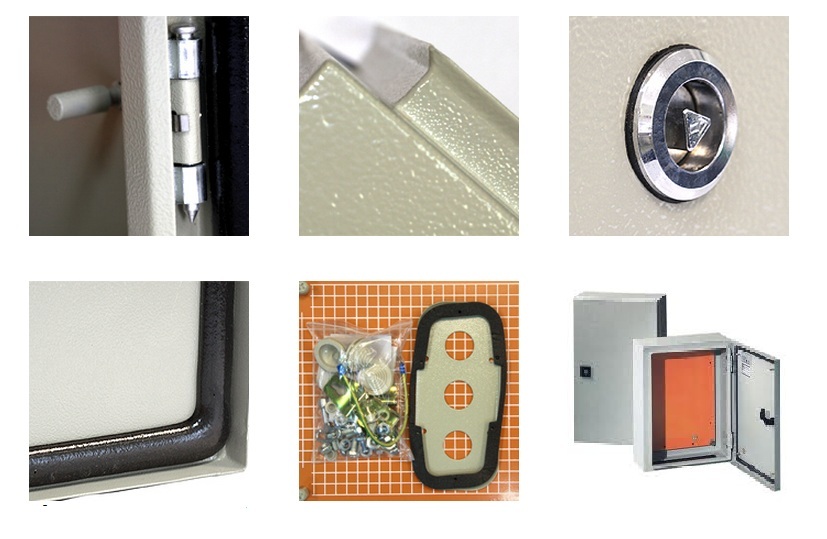

  • Body and door manufactured in 1.2/1.5 mm sheet steel,
  • Mounting plate with folded edge in 2.0 mm sheet steel,
  • Finished with thermosetting epoxy polyester powder coating,
  • Body and door textured finish,
  • Mounting plate in smooth finish.
