CH-10Q Insulator

CH-10Q Insulator

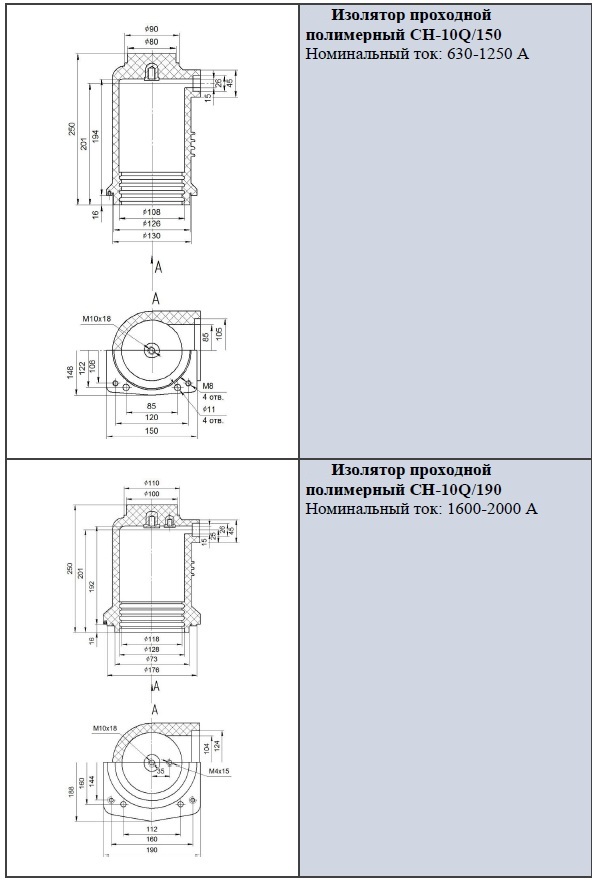

Passing polymer insulator CH-10Q is designed to isolate the plug connections of the main circuit in the cells of a roll-out elements.

Material: Epoxy Rated current tires: up to 4000 A

Rated voltage: 10kV

Maximum voltage: 12KV

Installation height: ≤ 1000m;

Ambient temperature: -10 ... + 40º C;

Relative humidity less than 95%;

No corrosive gases, dust concentration, destroying insulation.

Application: to go through conductive busbars switchgear design.
