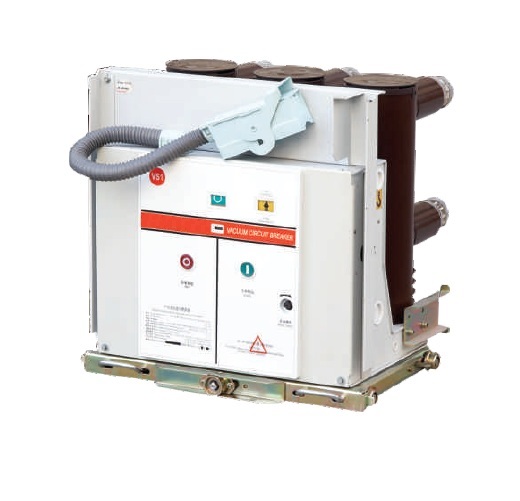

MVS1-12 (ZN63)

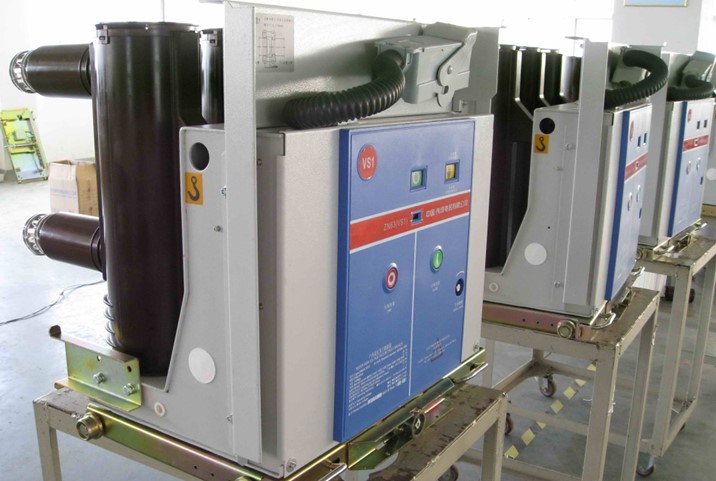

Vacuum Circuit Breakers MVS1-12 (ZN63)

Category:
  • Share:
Ask a Question

Description



Designed for rigorous industrial applications, the MVS1-12 (ZN63) and its enhanced version, MVS5-12 (ZN83), serve as reliable indoor medium-voltage vacuum circuit breakers. Created to fulfill the needs of various sectors including industrial and mining enterprises, power plants, substations, and electrical facilities, these vacuum circuit breakers provide durability where frequent operations are required.

MVS1-12

In conclusion, METTZ Group’s MVS1-12 (ZN63) is more than just a circuit breaker; it’s a technology-driven solution offering high performance, robust construction, and adaptability.

Its range of features ensures that it can be tailored to suit a multitude of industrial applications, providing peace of mind for those seeking a long-lasting, reliable solution.

Количество просмотров 36

Parameters



Main Technical Data

Rated voltage 6-10 kV
Maximum working voltage 12 kV
Rated current Options ranging from 630A to 4000A
Dielectric strength 42 kV at 50 Hz industrial frequency
Test voltage of full lightning discharge 75 kV
Symmetrical short-circuit breaking current 16,20,25,31.5,40,50 kA
Nominal peak value of permissible through current 40,50,63,80,100,125 kA
Thermal resistance current (4s) 16,20,25,31.5,40,50 kA
Rated switching cycle 0-0.3s-v0-180s-v0
Mechanical cycle life 10,000
Switching Times Closing <70ms, Opening <45ms, Off time <60ms
Power of the inclusion coil 250 VA
Trip coil power 250 VA

Vacuum Circuit Breakers’ Purpose and Applications

The MVS1-12 (ZN63) is engineered for three-phase alternating current networks operating at a frequency of 50 Hz and a rated voltage of 6 -10 kV. These breakers can be deployed in switchgear, switchgear cubicles, and are designed for transverse arrangement in a cell relative to busbars.

Usage and Environmental Conditions

Altitude Up to 1000 m
Temperature -25 °C to + 40 °C
Humidity Day and monthly averages of 95% and 90% respectively
Seismic resistance Up to 8 points
Environment Non-explosive, free from aggressive gases, vapors, or dust
Reliability Requirements Various mechanical and switching resistance cycles
Warranty 2 years from commissioning
Lifespan 20 years
Количество просмотров 36

Solutions



Innovative Design for Enhanced Performance

One of the distinctive design aspects of this switch is the transverse pole arrangement. It offers convenient access for installation and maintenance, and the closing spring-driven operation ensures efficiency. Arc extinction is executed by vacuum interrupter chambers (VI), with fractions of microseconds restoring the voltage between contacts.

Robust Construction

The circuit breaker consists of three poles fixed to the housing, all constructed with insulating material to allow embedding in cells with limited space. Each pole houses a vacuum arrester, a preloading mechanism, and current outputs.

Spring Drive Efficiency

Equipped with a spring drive with low current consumption, this design involves an electric motor, a switching spring, a breaking electromagnet, and other key components. It offers direct current operational power supply, with diode bridges installed for alternating current needs.
