Vacuum Circuit Breaker MVS10-12 (ZN53)

Description

MVS10-12 (ZN53) Vacuum Switch VU — side mounted vacuum circuit breaker (vertical) 10kV vacuum circuit breaker with a handle with a assembled poles

Rated voltage, kV: 6-10

The greatest working voltage, kV: 12

Rated current, A: 630, 1250, 1600, 1600A

Nominal supply voltage of control circuits and elements of auxiliary circuits, V ~ 220; = 220

Количество просмотров 19

Number	Parameter		Unit	Value
1	Rated voltage		kV	12
2	Rated frequency		Hz	50
3	Rated insulation level	Rated short-time power frequency withstand voltage (1min) (interphase, relative ground, fracture)	Hz	42
		Rated lightning impulse withstand voltage (phase, phase, port)	kV	75
4	Rated current		A	630	630	1250	1600
5	Rated short-circuit breaking current		kA	20 、25 、31.5 、40
6	Rated short-time withstand current (rated short-time thermal stability current)		kA	20 、25 、31.5 、40
7	Rated short-circuit making current		kA	50、 63、 80 、100
8	Rated peak withstand current (rated dynamic stable current)			50、 63、 80 、100 51、
9	Rated short-circuit duration (rated thermal stabilization time)		S	4
10	Rated short-circuit current breaking times			O-0.3s-CO—180s-CO
				O-180s-CO-180s-CO (40kA)
11	Mechanical life		times	30、20 (40kA)
12	Rated single capacitor bank breaking current		times	10 000 — 20 000
13	Rated single capacitor bank breaking current		A	630
14	Rated back-to-back capacitor bank breaking current		A	400
15	Out-of-phase earth fault breaking current		A	27.4
16	The moving and static contacts allow the accumulated thickness of wear		mm	3

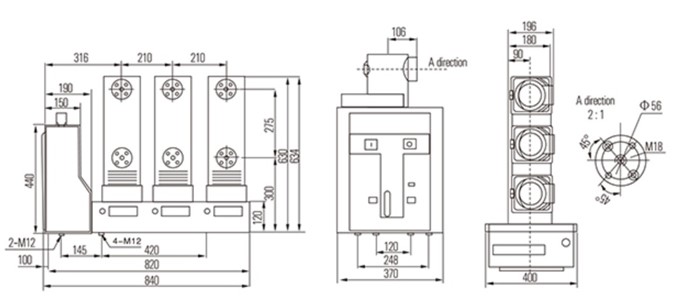

Vacuum circuit breakers of this series can significantly reduce the dimensions of the switchgear
The non-separable pole design increases dielectric strength, insulation reliability and protects cameras from adverse environmental influences.
The design of the vacuum chamber of the circuit breaker eliminates increased wear of the contacts and their premature erosion thanks to AMF technology, which distributes the arc evenly over the entire surface of the contacts.
The circuit breaker drive has high mechanical reliability and low power consumption
The ability to install mechanical interlocks to lock other switchgear devices from the vacuum circuit breaker.
The ability to install maximum current releases 3A or 5A for use in circuits with bypass.

Количество просмотров 19

MVS10-12 Side Mounted Vacuum Circuit Breaker more advantages:
