Outdoor Vacuum Circuit Breakers MZW43-12

Category:
  • Share:
Ask a Question

Description



Rated voltage, kV: 10
The greatest working voltage, kV: 12
Rated current, A: 630, 1250

Vacuum circuit breakers MZW43-12 three-phase high-voltage vacuum circuit breaker, for outdoor installation, designed for switching electrical circuits under normal and emergency conditions in three-phase alternating current networks with a frequency of 50 Hz with a rated voltage of up to 10 kV. Execution options: in the painted steel or in the stainless case.

The switch can be used in substations, industrial and mining enterprises, urban and rural energy networks for protection and control, in places of frequent switching and in urban automatic distribution networks.

Device is created using the latest achievements and technologies in design, insulation and processing, complies with IEC (IEC) 56, GB1984 and DL403 standards. Also, the switch has many other advantages, such as light weight and size, appearance, high reliability and lack of maintenance.

Количество просмотров 21

Parameters



Operating conditions ZW43-12:

  1. Altitude: up to 1000 m.
  2. Ambient temperature: from -45°С to + 45°С.
  3. Humidity: the average value of relative humidity during the day is not more than 95%; the average value of relative humidity during the month is not more than 90%.
  4. Seismic resistance up to 8 points.
  5. The environment is not explosive, does not contain dust, aggressive gases and vapors in concentrations that destroy metal and insulation.
  6. Service life of the circuit breaker 20 years.
  7. Warranty period from the date of commissioning — 2 years.
  8. Icing Thickness: 20mm
Model NO. MZW43-12(G)
Type Circuit Breaker
Function Conventional Circuit Breaker
Certification ISO9001-2000, CE, CCC
Rated Short Circuit Duration 4s
Mechanical Life Time 10,000 times
Rated Current of Over Current Release 5A
Contact Opening Distance 8-10mm
Weight 90Kg



Compliance with standards:

GB1984 standard: high voltage circuit breaker for AC networks.

GB3309 standard: mechanical test of high-voltage switching equipment with

normal temperature.

GB / T5465.2 standard: digital designation of electrical equipment

GB5582 standard: external insulation of high voltage electrical equipment

GB7354 standard: partial discharge measurement.

GB / T11022 standard: general technical requirements for high voltage switches standards of control equipment.

GB / T16927 standard. 1.: a general test of the first part of high-voltage technology.

DL402 Standard: Technological Description of High Voltage Switch alternating current.

DL403 Standard: Technological Description of High Voltage Switch alternating current of external installation on 10-35 sq.

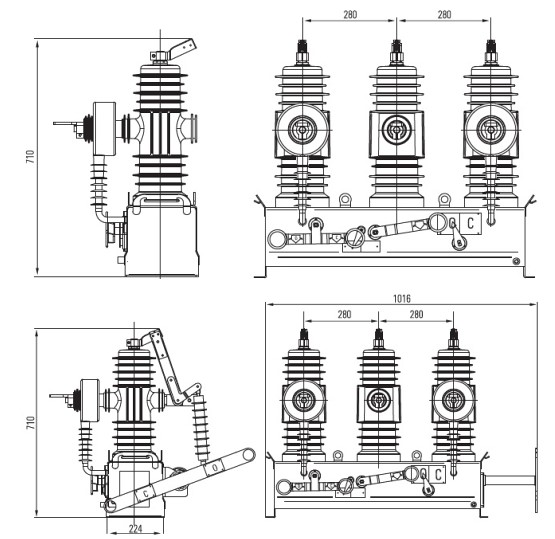

Dimensions:

MZW43-12-1





Количество просмотров 21

Solutions



The principle of operation of the switch MZW43-12

The MZW43-12 model of a high-voltage vacuum circuit breaker is characterized by the presence of a vacuum arcing chamber and an insulator in the form of an epoxy compound. The principle of operation of the switch is based on the extinction of the electric arc that occurs when the contacts are opened in a vacuum, and the current through the vacuum chamber passes only in a short period of time when performing on and off operations. The high dielectric strength of the vacuum gap ensures reliable arc extinction. In the on position, the rated current and short circuit currents pass through the main contacts, in the off state position, the main contacts open, forming a visible gap.

Since switching processes occur inside the vacuum chambers, the circuit breaker does not forms emissions of products of burning the arc, both during shutdown and when turned on.

Due to the use of a longitudinal magnetic field to control the occurrence of an electric arc in a vacuum, the vacuum circuit breaker has good performance in terms of reliability and switching resource.
