Application: For control and protection of 145kV power system. Standards:  IEC 62271-100

Main parameters:

• Rated voltage: 145kV.
• Rated current: 3150, 4000A.
• Rated short-circuit breaking current: 40kA.

Features:

1. Reliable insulation performances.
2. Utilization of spring operating mechanism.
3. Low noise, easy or free of maintenance.
4.  Easy installation and adjustment.

Working Conditions:

• Ambient temperature: -40ºC ~ +40ºC
• Daily temperature variation: 25
• Pressure: ≤ 700PA
• Altitude: ≤ 3000m
• Seismic intensity: ≤ 8 degrees
• Air Contamination: III grade
• Sunshine: 0.1 W/cm
• Relative humidity: Daily average value 95%
• Monthly average value 90%
• Wind velocity: 34 m/s
• Seismic: Horizontal acceleration is 0.250g
• Vertical acceleration is 0.125g
• Pollution level: 25mm/kV), 31mm/kV
• Thickness of ice covering: 10 mm (the wind velocity 15m/s)
• Protection degree: IP5XW

Note: Customized products are available.

You can ask Data Sheet List for this product before order: This email address is being protected from spambots. You need JavaScript enabled to view it.or This email address is being protected from spambots. You need JavaScript enabled to view it.

Application: For control and protection of 126, 145kV power system.

Standards:  IEC 62271-100

Main parameters:

• Rated voltage: 126, 145kV.
• Rated current: 3150, 4000A.
• Rated short-circuit breaking current: 40kA.

Features:

1. Reliable insulation performances.
2. Utilization of spring operating mechanism.
3. Low noise, easy or free of maintenance.
4. Easy installation and adjustment.

Working Conditions:

• Ambient temperature: -40ºC ~ +40ºC
• Daily temperature variation: 25
• Pressure: ≤ 700PA
• Altitude: ≤ 3000m
• Seismic intensity: ≤ 8 degrees
• Air Contamination: III grade
• Sunshine: 0.1 W/cm
• Relative humidity: Daily average value 95%
• Monthly average value 90%
• Wind velocity: 34 m/s
• Seismic: Horizontal acceleration is 0.250g
• Vertical acceleration is 0.125g
• Pollution level: 25mm/kV), 31mm/kV
• Thickness of ice covering: 10 mm (the wind velocity 15m/s)
• Protection degree: IP5XW

Note: Customized products are available.

You can ask Data Sheet List for this product before order: This email address is being protected from spambots. You need JavaScript enabled to view it.or This email address is being protected from spambots. You need JavaScript enabled to view it.

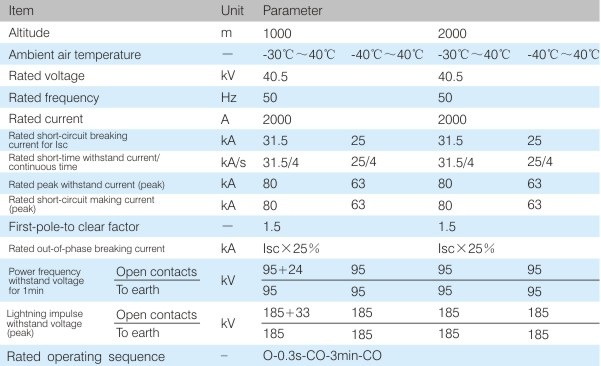

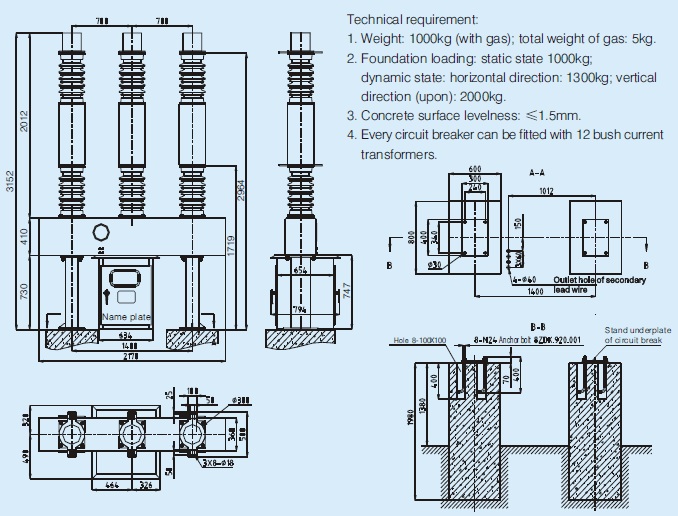

LW8A-40.5 type outdoor high-pressure sulfur hexafluoride circuit breaker is three-pole ac 50 hz, outdoor high voltage switch equipment, applicable to 40.5 kV power transmission and distribution system control and protection, can also be used to contact circuit breaker and movable capacitor group.

Standard: IEC 62271-100.

Certification: ISO9001-2000, CCC

Operation: Energy-storage Type

Installation: Fixed

Arc-extinguishing Medium: SF6

Speed: Normal Type Circuit Breaker

HS Code: 85353000

Application: three-phase AC 50Hz outdoor HV electrical apparatus with CT14 spring operating mechanism, for control and protection of 40.5kV power system as well as communicating with circuit breaker. Current transformer inside as well for measuring and protection.

Working Condition

• Sunlight: 1000W/m
• Relative humidity: Daily average value is 95%
• Monthly average value is 90%
• Seismic: Horizontal acceleration: 0.250g
• Vertical acceleration: 0.125g
• Pollution level: (25mm/kV)
• Thickness of ice covering: 10mm (when wind speed 15m/s)
• Protection degree: IP5XW
• Max wind velocity 34m/s

Note: Customized products are available.

You can ask Data Sheet List for this product before order: This email address is being protected from spambots. You need JavaScript enabled to view it.or This email address is being protected from spambots. You need JavaScript enabled to view it.

LW8-40.5 type outdoor high-pressure sulfur hexafluoride circuit breaker is three-pole ac 50 hz, outdoor high voltage switch equipment, applicable to 40.5 kV power transmission and distribution system control and protection, can also be used to contact circuit breaker and movable capacitor group. LW8-40.5 type circuit breaker with CT14 type spring operation mechanism.

Accord with national standard GB1984-89 AC high voltage circuit breaker, and the international electro-technical commission standard IEC56 publications of high voltage circuit breaker.

Structure: ELCB

Certification: ISO9001-2000, CCC

Operation: Energy-storage Type

Installation: Fixed

Arc-extinguishing Medium: SF6

Speed: Normal Type Circuit Breaker

HS Code: 85353000

Specification:

1. Outdoor type,
2. SF6 circuit breaker,
3. Dirtness resistance,
4. Spring mechanism.

Feature advantages

1. open circuit performance is good, short arc time and current life is long, continuous open 31.5 kA short circuit current at rated voltage 21 times don't repair, do not replace the sulfur hexafluoride gas;
2. insulation and reliable;
3. high mechanical reliability, frequent operation;
4. movable capacitor current is 400 a group without renewed;
5. simple structure, small volume, no maintenance cycle is long.

LW8A-40.5(W)T2000-31.5 outdoor type SF6 breaker finds its universal range of applications for the three-phases electrical system with alternating current 50HZ and rated voltage 40.5kv. It is used for controlling and protecting the electrical system and measuring the current transformers.

Working conditions:

• Sunlight: 1000W/m
• Relative humidity: Daily average value is 95%
• Monthly average value is 90%
• Seismic: Horizontal acceleration: 0.250g
• Vertical acceleration: 0.125g
• Pollution level: (25 mm/kV)
• Thickness of ice covering: 10 mm
• Protection degree: IP5XW
• Max wind velocity: 34m/s
• Note: Customized products are available.

You can ask Data Sheet List for this product before order: This email address is being protected from spambots. You need JavaScript enabled to view it.or This email address is being protected from spambots. You need JavaScript enabled to view it.

ZW7-40.5 type of outdoor high voltage vacuum circuit breaker is three-phase ac frequency 50 Hz, rated voltage of 40.5 kV outdoor high voltage switch equipment.

Circuit breaker meet the national GB1984 the high-voltage ac breaker "and professional standard JB3855" 3.6~40.5 kV voltage vacuum circuit breaker outdoor exchange "and relevant IEC standard. For industrial enterprise, power plants and substation of electrical equipment for control and protection with, and applies to frequent operation place. Circuit breaker has repeatedly open circuit and fast reclose ability.

Features:

1. The breaker is adopted the vacuum interruption and has strong ability of closing and long life time. This mechanical life reaches 10000 times.
2. The structure is simple and maintenance-free. It also has long period of no-overhauling
3. It has the characters of good insolating ability and strong stain removal ability.
4. Spring and magnetic control mechanism can be configured. Mechanical energy is reliable and can be used frequently. There is no hidden trouble of fire and bombing.
5. Inside, mutual inductor of which measuring accuracy reaches level 0.2  is installed.
6. There is condensation controller inside, which can protect the breaker to operate under the condition of certain temperature and humidity.

Using environmental condition

1. The altitude above sea level does not over 2,000 meters;
2. Surrounding air temperature: -40 ℃~+40 ℃;
3. The wind speed is not bigger than 34m/s;
4. The air filthy should be with in Ⅲdegree (pollution level, level 3)
5. Installing places: Not flammable, the explosion hazard, chemistry corrode place;
6. Does not have the regular fierce vibration

This product has the main advantages:

• good sealed performance,
• anti-aging,
• high-aging,
• high-voltage resistant,
• non-combustion,
• non-explosion,
• long age limit,
• convenience for installation and maintenance.

You can asking Data Sheet List before order: This email address is being protected from spambots. You need JavaScript enabled to view it. or This email address is being protected from spambots. You need JavaScript enabled to view it.

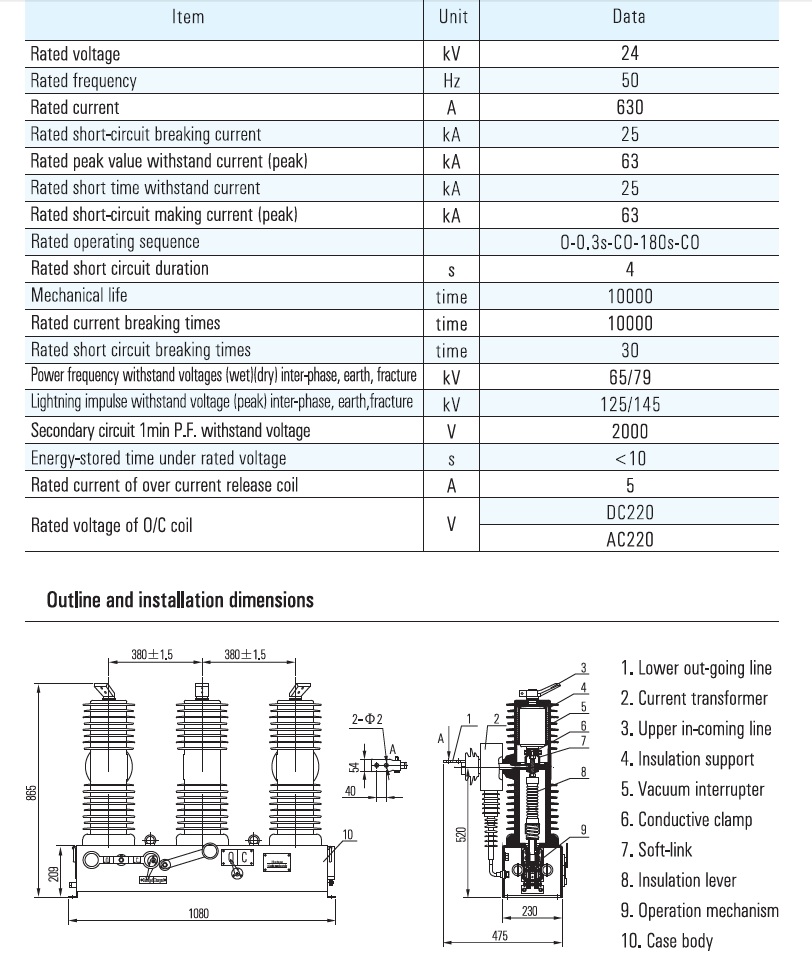

ZW32-24 type outdoor high voltage vacuum circuit breaker is three-phase AC,50(60)Hz outdoor power distribution equipment with the rated voltage of 24kv,Used to open and close the load current,over load current,and short circuit current in the electric power system. Also used to protect and control the circuit in substation,mining and industrial enterprises, and frequently used in the operation places such as rural power network.

Using environmental condition:

1. The altitude above sea level does not over 2,000 meters;
2. Surrounding air temperature: -40 ℃~+40 ℃;
3. The wind speed is not bigger than 34m/s;
4. The air filthy should be with in Ⅲdegree
5. Installing places: Not flammable, the explosion hazard, chemistry corrode place;
6. Does not have the regular fierce vibration

The most popular type has this options:

• electrical operation,
• stainless steel shell,
• disconnector,
• voltage transformer.

You can asking Data Sheet List before order: This email address is being protected from spambots. You need JavaScript enabled to view it. or This email address is being protected from spambots. You need JavaScript enabled to view it.

ZW32-12M Type Outdoor Intelligent Permanent Magnet Vacuum Circuit Breaker (with Manual Quick-closing Function Of Patents)

Product Summary

With the rapid development of the power grid construction, power supply reliability requirements for safety more and more high, and in the power system, the improvement of the distribution network operation requirements and feeder automation (FA) the need to build a single function equipment in the application of the distribution network is more and more shows its inconvenience.

From the development of the system and distribution network on, developed a series of using the modern electronic technology and communication technology, the computer technology, the sensor technology and network technology, will power distribution network real-time information, information, and the user's information, power grid structure parameters for integration, have fault detection function, protection control function, the automatic measurement function, modern communication function and the event log function, can realize the automatic segmentation fault current, fast break fault isolation distribution node (FTU/TTU) intelligent integration switch is imperative.

Based on this thought, the company developed the ZW32-12M type outdoor permanent magnet type vacuum circuit breaker, widely used in the city grid as points off or contact switch, or used for rural substation to qualify as a distribution system outdoor switch, but effective points, and load current and short circuit current.

Device configuration of the internal control and communication function measurement protection can fully satisfy the power distribution automation system requirements.

The most popular type has this options:

• electrical operation
• stainless steel shell
• disconnector
• voltage transformer
• controller
• the "M" means the ZW32 is by permanent magnetic operation

You can asking Data Sheet List before order by e-mail: This email address is being protected from spambots. You need JavaScript enabled to view it.  or This email address is being protected from spambots. You need JavaScript enabled to view it.

ZW32-12G type of outdoor high voltage vacuum circuit breaker (hereinafter referred to as the circuit breaker) is three-phase ac frequency 50 Hz, rated voltage of 7.2~12 kV outdoor high voltage switch equipment with switch-disconnector.

Circuit breaker meet the national GB1984 the high-voltage ac breaker "and professional standard JB3855" 3.6 ~40.5 kV voltage vacuum circuit breaker outdoor exchange "and relevant IEC standard.

For industrial enterprise, power plants and substation of electrical equipment for control and protection with, and applies to frequent operation place.

Circuit breaker has repeatedly open circuit and fast reclose ability.

The most popular type has this options:

• electrical operation
• stainless steel shell
• the "G" means the ZW32 is with disconnector

You can asking Data Sheet List before order by e-mail: This email address is being protected from spambots. You need JavaScript enabled to view it.  or This email address is being protected from spambots. You need JavaScript enabled to view it.

ZW32-12 type of outdoor high voltage vacuum circuit breaker (hereinafter referred to as the circuit breaker) is three-phase AC frequency 50 Hz, rated voltage of 7.2~12 kV outdoor high voltage switch equipment.

Circuit breaker meet the national GB1984 the high-voltage AC breaker and professional standard JB3855 3.6 ~40.5 kV voltage vacuum circuit breaker outdoor exchange and relevant IEC standard.

ZW32-12 is good solution for industrial enterprise, power plants and substation of electrical equipment for control and protection with, and applies to frequent operation place.

Circuit breaker has repeatedly open circuit and fast reclose ability.

You can asking Data Sheet List before order by e-mail: This email address is being protected from spambots. You need JavaScript enabled to view it.  or This email address is being protected from spambots. You need JavaScript enabled to view it.

VZW20A-12C type AC H.V. vacuum pole automatic controller is used in tri-phase electric system of AC 50 Hz, rated voltage 12kV. It can breaking and closing load current, overload current and short circuit fault current, as a device to control and protect electrical network.

Main functions

The controller is an intelligentized device, matches sectionalizer to reach distribution automation without other control system. Consist of circuit breakerlwith mechanism operation), controller and control power, besides to opening or closing regular and fault current as circuit breaker, it can repeatedly auto reclosing by advanced setting times for sectionalizer to isolate fault circuits when the short circuit fault happen. The non-fault lines will resume power supply; if repeatedly auto reclosing failed, closing and interlock inside of the controller, another side of network, originally closing and interlock status will remove interlock and auto closing, non-fault lines resume power supply at once. The network automation could limit the power supply interrupted district into minimum range, it has high social benefit and economical benefit.

The product is practical and reliable, multiple functional, the controller uses microprocessor, the panel shown in digital, conveniently with person-machine talking, all the parameters could be adjusted, new function of GPRS communication system could achieve opening, closing operation and teledata communication function by mobile phone, it can transmit lines parameters and running state of the equipment.

The product adopts VZW20A-12 type outdoor AC H.V. vacuum circuit breaker as noumenon, the noumenon switching adopts vacuum interrupter to arc extinguishing and SF6 gas to isolate, the case adopts gas sealed, isolation structure technic. No leakiness of internal filling gas, the spring mechanism operation promotes with miniaturization and performance optimization design, operation reliability is more advanced than domestic traditional spring mechanism. Main circuit is sealed inside the case, it has the advantage of anti-explosion, anti-condensation, anti-nasty, no influence by outside environment, it is the first choice on controlling and protecting for intelligent electrical network.

Main characteristics

1. Main circuit and mechanism operation of circuit breaker are sealed in SF6 gas, no influenced by outside environment, reaches requirement of free maintaining and long life.
2. It completes a set with electronic controller, to realize remote-control, remote-supervision, remote-signalling, remote-adjusting function, to achieve electrical network intelligent control requirement.
3. New design of miniaturization electromotion spring mechanism, whole spare parts of the product reduced to lowest level, increase the reliability and energy saving of circuit breaker.
4. Fixed with anti-explosion device at the top of case, to avoid leakiness of high temperature gas and splash even if accident occur, ensuring the safe and reliability for the product.
