JN22B-40.5/31.5 ndoorAC high vottage earthing switch is an advanced level product with high-tech parameters performance iproved on the basis of JN22-40.5/3l.5.

After comprehensive evahatbnit conforms to GB1985 AC HV disconnect switch and earthng switch and IEC62271-102:2002, appies to power system of 40.5kV and AC 50Hz. Can be used with KYN61-40.5 and other types high votage switchgear, also play a protective rolen the high-voltage electrical equipment overhaul

DOWNLOAD

JN15-24/31.5 indoor HV earthing switch. Сonforms to GB 1985-2004 AC HV disconnect switch and earthing switch, relative standards IEC62271-102: 2002.

It applies to power system of rating below 24kV, and AC 50Hz. It has short-circuit making capacity to protect other electrical equipment in the switching equipment, and also be used for earthing protection when overhauling high-voltage electrical apparatus.

DOWNLOAD

JN15 series indoor HV earthing switch absorbs advanced new technics from domesitc and overseas. It conforms to GB 1985 AC HV disconected switch and earth switch,relative standards IEC62271-102. The apparatus applies to power system of rating below 12/24/40.5, and AC 50/60HZ. It is suitable for various types HV switchgear for earthing protection.The holistic earthing switch consists of basis,supporting insulator,main axis,main blade,fast spring,fixed and moving contact. Addtional electronic display also available according to the user's requirement.

Ambient Condition

1. Altitude: ≤1000m;
2. Ambient temperature: -25℃~ +40℃
3. Ralative humidity:daily average ≤95%, monthly average ≤90%;
4. Earthquake intensity: ≤8 degree

Product Feature

1. Advanced design and steady performance.
2. Simple structure,simple mounting and adjustment.
3. Quick breaking and making capability.
4. Beautiful appearance and delicate manufacture technics.
5. Usable and scientific,available operation on both two sides(right and left).

Technical Specification

JN15-12/31.5 series indoor HV Earth Switch is advance product for collective high technology on the world . Through comprehensive examine, the feature comply with GB1985-89<<AC HV disconnecting switches and earth switches>>and IEC129 standard , suitable for power system with 12KV and blow AC 50Hz , support with kinds of HV switchgear and as earth protection.

DOWNLOAD

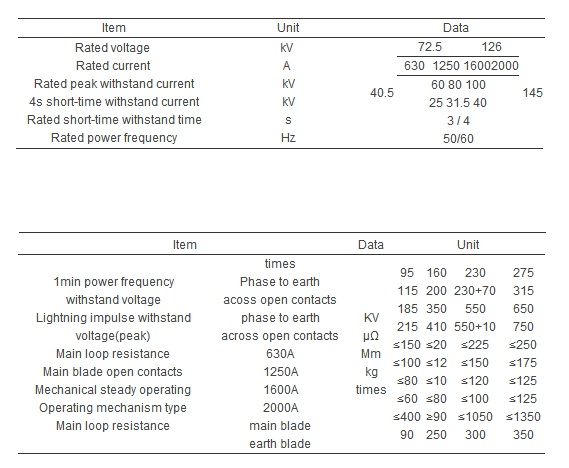

GW5 outdoor high voltage disconnect switch is used to make or break high voltage circuit in rated voltage 40.5kV, 72.5kV or 126/145kV, AC 50/60Hz& system, It is also used to open and close small capacitance and inductive current.

This series disconnect switch accord with standards: GB1985 AC High voltage disconnect switch and earthing switch, IEC60129 AC disconnect switch and earthing switch and GB/T11022 Common technical requi rements of HV switchgear and control equipment.

There are two supporting insulators fixuped on the pedestals respectively with the 50 inclinat ion, and the main components include pedestals, supporting insulators, connection seat, contacts earthing blades, earthing fixed contact and so on.

There are three kinds of disconnect switch: without earthing, single-earthing and double-earthing. It be provided with mechanism linkage between principal axis and earthing blades and assistant switch, operating can be achieved by manual and motor.

FZWO-27.5/2000-25 outdoor AC high voltage disconnect vacuum load break switch is applicable for 27.5kV or below, 2000A 50/60Hz electrical railway line as control apparatus. it can making and breaking rated or below load current, rated cable charging current and rated short-circuit current. It can keep series power-on operating, inverse power-supply, isolate fault section and supply power beyond area, etc.

1. Altitude: 1000m;
2. Ambient temperature: -40 ~+40 ;
3. Earthquake intensity: 8 degree;
4. Air pressure: 700Pa, (equivalent with wind speed at 34m/s);
5. Ice thickness: 10mm.

You can ask Data Sheet List for this product before order: This email address is being protected from spambots. You need JavaScript enabled to view it.or This email address is being protected from spambots. You need JavaScript enabled to view it.

FLN36-12D indoor high voltage AC load switch is our company according to the international new technology, and according to the relevant standard of power system in China developed medium voltage switchgear, its performance indicators in full compliance with the IEC420, 694,129 and the national standard GB3804-2004 3.6kV-40.5kV High Voltage AC Load Switch, GB1985-2004 High Voltage AC Disconnectors and Earthing Switches, GB/T11022-1999 High Voltage Switch Equipment and Control Equipment Standard Shared Technical Requirements, is the main switch components of ring network cabinet.

The load switch is set closing, opening, grounding for the integration of multi-function medium voltage switchgear, in a fully sealed, epoxy resin shell filled with strengthening to 0.05 MPa of SF6 gas, With a minimum of parts to achieve the above three functions, ensuring that the product quality, improve the reliability. Under normal conditions can be safe operation for more than 20 years with maintenance free.

FZW32-40.5outdoor AC high voltage vacuum load-breaking switch is a new type of load switch designed manufactured via integrating the mature experience of domestic existing load switch production and foreign advanced technology.

• Structure: ACB
• Poles Number: 3
• Certification: ISO9001-2000
• Operation: Energy-storage Type
• Installation: Fixed
• Arc-extinguishing Medium: Vacuum

The mechanism of FZW32-40.5is designed as a whole with vacuum interrupter. Specialized 3AF type spring operating structure from Siemens can be operated by manual or carry out direct current energy saving operation. It's can be designed as 350mm, 400mm, 460mm and other kinds of phase space, which matches better with different kinds of switchgear, such as fixed type XGN17-40.5, type JYN1-40.5, KYN10-40.5.

Working conditions:

• Ambient temperature: Max +40° C min -30° C,
• Altitude: ≤ 1000m,
• Relative humidity: Daily average relative humidity: ≤ 95%; Monthly average relative humidity≤ 90%, daily average saturated vapor pressure ≤ 2.2*10-3 MPa, monthly average value ≤ 1.8*10-3 MPa
• Earthquake intensity: ≤ 8 degree
• The installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution

Main Technical Data:

• Rated voltage, kv 40.5
• Rated lighting impulse withstand voltage(peak), kv 185
• Rated short-time power frequency withstand voltage(1min,) kv 95
• Rated short-circuit breaking current kA 25 31.5
• Rated current A 1250/1600 1250/1600/2000
• Rated peak withstanding current, kA 63 80
• Rated operations of short-circuit breaking current interruption, times 20
• Rated duration of short-circuit, s 4
• Rated operating sequence 0-0.3-CO-180s -CO
• Supply voltage of open and close installation V AC, DC220 AC, DC110
• Closing time, ms 50~100
• Opening time, ms 30~60
• Rated single capacitor bank breaking current, A 630
• Rated back to back capacitor bank breaking current, A 400
• Mechanical life times, (M1 degree)10000
• Rated contact stroke, mm 22± 2
• Contact over travel, mm 8± 2
• Average opening speed, m/s 1.8± 0.2
• Average closing speed, m/s 0.65± 0.2
• Contact bouncing duration at closing operation, ms ≤ 3
• Three-pole simultaneity, ms ≤ 2
• Conductive circuit resistance of each phases, μΩ ≤ 45

Note: Rated characteristics can be given on requirement.

You can ask Data Sheet List for this product before order by e-mail: This email address is being protected from spambots. You need JavaScript enabled to view it.or This email address is being protected from spambots. You need JavaScript enabled to view it.

FZW32-12 outdoor AC high voltage vacuum load-breaking switch is a new type of load switch designed manufactured via integrating the mature experience of domestic existing load switch production and foreign advanced technology.

This load switch consists of the isolating switch, arc extinguish chamber, operating mechanism and so on. It adopts the principle of vacuum arcing. With strong arcing ability, reliable performance long life, small volume, no explosion hazard and no pollution of the environment.

Corresponding vacuum load switch can be used for the transmission and distribution system of electric power, metallurgy, mining, chemical engineering and other departments for control equipment, especially suitable for frequent operation.

Automatically cut single phase earthing fault: when users tributary line cause single phase earthing fault, the boundary switch will open automatically, other distribution line users of the substation and feeding line will be without influence; isolation interphase short circuit fault automatically.

When the tributary line cause interphase short-circuit fault, boundary switch will open at once after out-wire protection tripping. After the substation reclose, fault line is isolated passively, other distribution users in feeding line resume power supply rapidly (equal to a transient fault).

Quick localization of fault: the tributary line fault cause boundary switch protection action, only the accident user cause power cut and by itself report the fault information, the power company could dispatch worker to live investigation; if the boundary switch match with communication module, it could transmit message to electricity management center.

Monitoring users load, boundary switch could configure wired or wireless communication enclosure to monitor data and transmit to electricity management center, make the achievement of real-time data monitoring of users load in long distance.

Function of network running, it could be used in network lines; function of measurement, monitor voltage, current, frequency and quantity of electricity of lines, and transmit to management center in long distance. Function of harmonic analyzing, to supply reliable basis for pollution administration of electricity net afterwards.

Condition of using environment

• a. Altitude: < 2000m
• c. Max. wind speed: < 25m/s e. Max. day temperature gap: 25 °С
• b. Relative humidity: < 90% (25’C)
• d. Ambient temperature: -40 °С ~ 85°С
• f. Max. ice-covering thickness: 10mm
•

FZRN25-12 Indoor AC high voltage load switch-fuse combination units appliances for three-phase AC 12kV, 50Hz power system, or with the complete power distribution equipment and swtchgears, combined substation and other ancillary uses, is widely used in urban network construction and transformation engineering, industrial and mining enterprises, high-rise buildings and public facilities, can be used as ring power supply unit or terminal equipment, play power distribution, control and protection.

This product has a breaking capacity, safety and reliability, long life, can operate frequent, compact structure, small size, light weight, the basic no need to maintain. Breaking with rated current, overload current and to prevent equipment missing running ability to switch a visible fracture of isolation, with combined installed capacity of the ground with the relevant switches and electrical spring agencies, to remote control.
