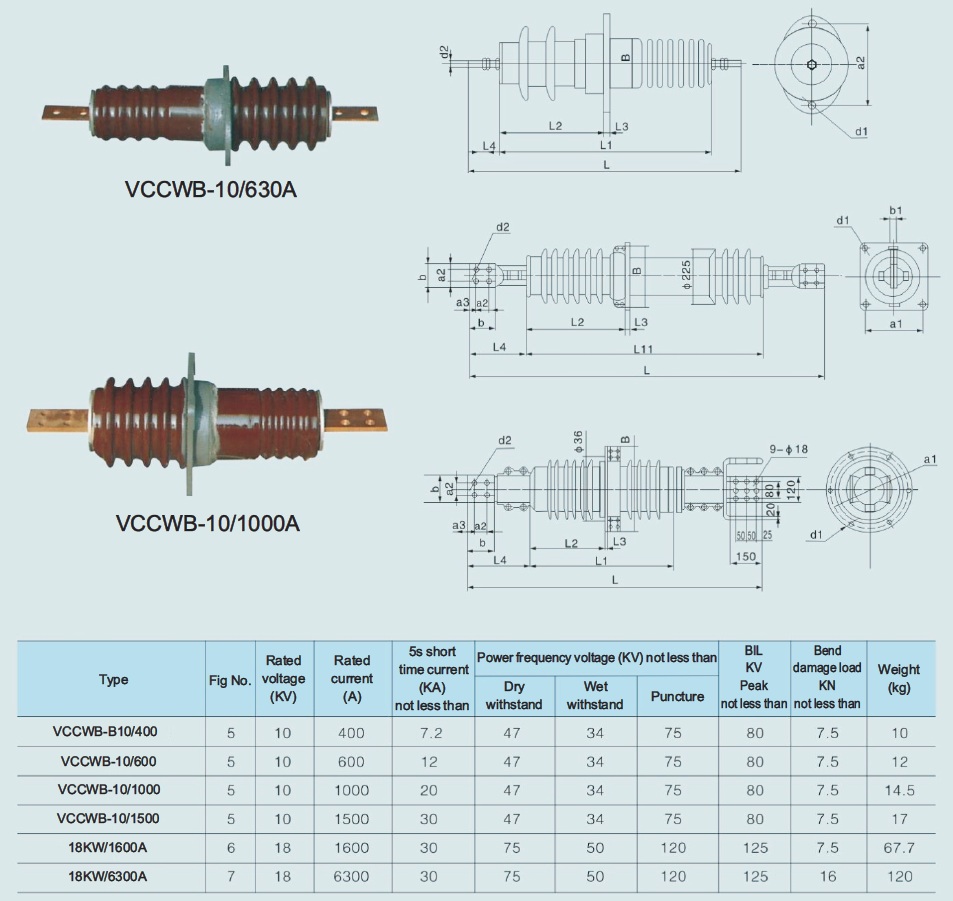

Bushing insulator VCCWB are designed for insulation and live parts enclosed switchgear power stations and substations, complete switchgear up to 10 kV and a frequency of 100 Hz to work in an atmosphere of types I and II, as well as for output from high voltage transformers tanks, oil and air circuit, as well as the wire insulation, passing through the walls of buildings.

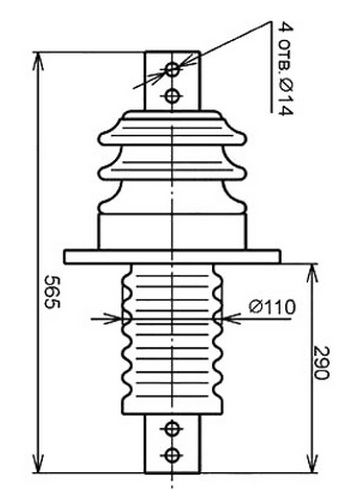

Bushing insulator MBI-10-630 are designed for insulation and live parts enclosed switchgear power stations and substations, complete switchgear up to 10 kV and a frequency of 100 Hz to work in an atmosphere of types I and II, as well as for output from high voltage transformers tanks, oil and air circuit, as well as the wire insulation, passing through the walls of buildings.

If the insulator is supplied without tires, the integration and consolidation of current-carrying parts in these insulators made directly on the mounting areas.

For mounting bushing MBI-10-630 tank top or on the wall it is equipped with metal flange. The flange is connected to the porcelain piece using cement-sand composition.

Busbar tire mounted in metal centering washers or metal caps. Caps and flange secured to the porcelain items using cement-sand composition.

Operating conditions of the insulator have far-protruding ribs (wings) that protect against rain situated beneath part of the insulator.

Can work in plants at temperatures from -45 to + 40 ° C at the height of installation up to 1000 m above sea level.

Main characteristics

Rated voltage, kV 10

Rated current, A 630

The maximum frequency of 100 Hz

Minimum destructive force to bend, kN 7

Height above sea level, m 1000

The minimum temperature -45 CA maximum temperature of 40 C.

Height mm 580

Service life, 25 years old

Passing polymer insulator MPI-10-95х130 is designed to isolate the plug connections of the main circuit in the cells of a roll-out elements.

Passing polymer insulator MPI-6-72х95 is designed to isolate the plug connections of the main circuit in the cells of a roll-out elements.

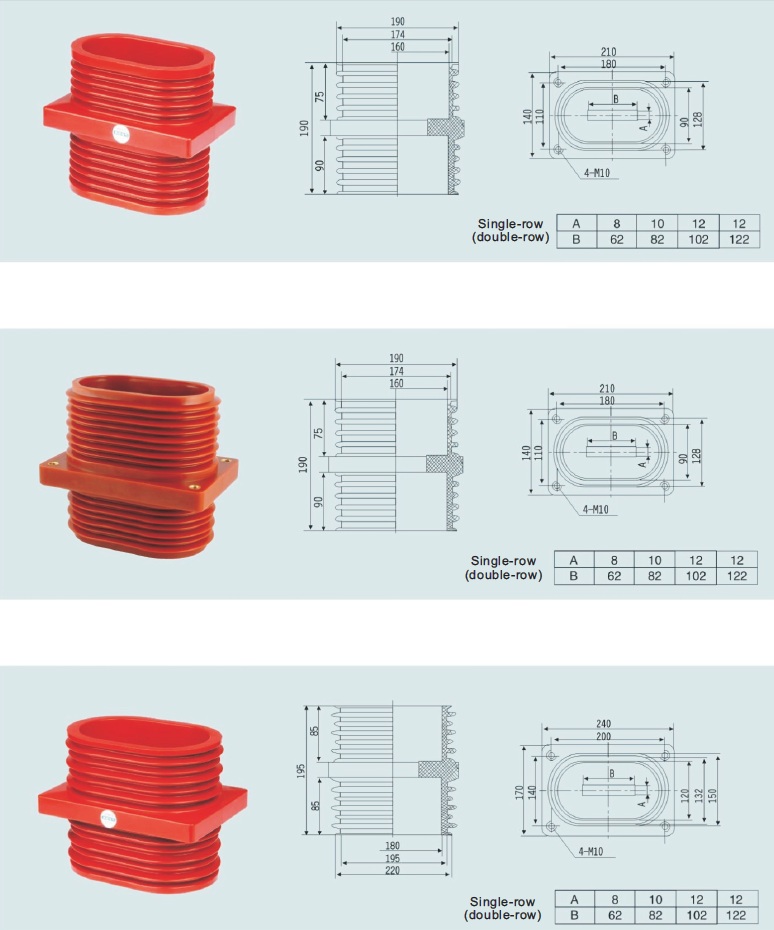

Passing polymer insulator TG3-10Q is designed to isolate the plug connections of the main circuit in the cells of a roll-out elements.

Passing polymer insulator CH-10Q is designed to isolate the plug connections of the main circuit in the cells of a roll-out elements.

Material: Epoxy Rated current tires: up to 4000 A

Rated voltage: 10kV

Maximum voltage: 12KV

Installation height: ≤ 1000m;

Ambient temperature: -10 ... + 40º C;

Relative humidity less than 95%;

No corrosive gases, dust concentration, destroying insulation.

Application: to go through conductive busbars switchgear design.

YBW-40.5 Substation. This series of pre-installed substation preinstalled type transformer substation is a high voltage switch equipment, power distribution transformer, the low voltage power distribution equipment according to user requirements, according to a line scheme by the factory, the outdoor type prefabricated forming complete set of equipment.

Each independent units installed perfect control, protection, charged display and stood with lighting system. The cabinet can be installed temperature, humidity automatic control device and forced ventilation system.

Application:

This series of pre-installed type transformer substation suitable for 40.5 kV power supply system, city high-rise buildings, residential area, mines, the subway, dock, hotels, malls, parks, station, school, hospital, oil field, airports, ports and temporary power supply facilities, such as wind power system of power grid connection, road lighting power supply, etc.

The product features:

1. Outdoor design, long service life.
2. Compact design, practical high efficiency.
3. Every board and into the VSD deux qualify to dust and moisture into the room.
4. The door cover, and side plate with insulating layer, have adiabatic effect.
5. Assembly type structure, it is convenient to replace each individual unit.
6. Each component remove, installation is convenient.
7. Can effectively prevent condensation.
8. The shell is made of recyclable materials, accord with environmental protection requirement.
9. Use of many design, and harmonious environment.

YBW-24 preinstalled type transformer substation. This series of pre-installed type transformer substation is a high voltage switch equipment, power distribution transformer, the low voltage power distribution equipment according to user requirements, according to a line scheme by the factory, the outdoor type prefabricated forming complete set of equipment.

High voltage switch equipment can choose: ABB, SIEMENS, F&G SF6 of ring net switch cabinets or ISARC and FN type load switch cabinet, can be a terminal or ring network power supply unit; Transformer can choose SC9 type dry type transformer or S9 oil-immersed transformer. Low voltage power distribution equipment imported or domestic famous quality low pressure switch, circuit breakers, ac contactor, each independent units installed perfect control, protection, charged display and stood with lighting system. The cabinet can be installed temperature, humidity automatic control device and forced ventilation system.

This series of pre-installed substation suitable for 7.2 ~ 40.5 kV power supply and the ring network terminal power supply system of city, high buildings, residential area, mines, the subway, dock, hotels, malls, parks, station, school, hospital, oil field, airports, ports and temporary power supply facilities, such as wind power system of power grid connection, road lighting power supply, etc.

Features:

1. Outdoor design, long service life.
2. Compact design, practical high efficiency.
3. Every board and into the VSD deux qualify to dust and moisture into the room.
4. The door cover, and side plate with insulating layer, have adiabatic effect.
5. Assembly type structure, it is convenient to replace each individual unit.
6. Can effectively prevent condensation.
7. The shell is made of recyclable materials, accord with environmental protection requirement.
8. Use of many design, and harmonious environment.
9. main technical parameters

YBW-12 preinstalled type transformer substation. This series of pre-installed type transformer substation is a high voltage switch equipment, power distribution transformer, the low voltage power distribution equipment according to user requirements, according to a line scheme by the factory, the outdoor type prefabricated forming complete set of equipment.

High voltage switch equipment can choose: ABB, SIEMENS, F&G SF6 of ring net switch cabinets or ISARC and FN type load switch cabinet, can be a terminal or ring network power supply unit. Transformer can choose SC9 type dry type transformer or S9 oil-immersed transformer, low voltage distribution device adopts imported or domestic famous quality low pressure switch, circuit breakers, ac contactor, each independent units installed perfect control, protection, charged display and stood with lighting system. The cabinet can be installed temperature, humidity automatic control device and forced ventilation system.

Application:

This series of pre-installed substation suitable for 7.2 ~ 40.5 kV power supply and the ring network terminal power supply system of city, high buildings, residential area, mines, the subway, dock, hotels, malls, parks, station, school, hospital, oil field, airports, ports and temporary power supply facilities, such as wind power system of power grid connection, road lighting power supply, etc.

Product features:

1. Outdoor design, long service life.
2. Compact design, practical high efficiency.
3. Every board and into the VSD deux qualify to dust and moisture into the room.
4. The door cover, and side plate with insulating layer, have adiabatic effect.
5. Assembly type structure, it is convenient to replace each individual unit.
6. Each component remove, installation is convenient.
7. Can effectively prevent condensation.
8. The shell is made of recyclable materials, accord with environmental protection requirement.
9. Use of many design and harmonious environment.

GGD AC LV distribution cabinet is suitable for power plant, power station, mining and industrial enterprises to transfer, distribute and control the powering  AC 50Hz, 380V rated working voltage, 3150A rated current lighting and distributing equipment.

GGD cabinet applies the universal cabinet form. The products has the features of high breaking capability, stable dynamic thermal ability, flexible electrical program, convenient combination, strong series and practice, innovative structure, high level of protection. It both shortens the production cycle and improves the efficiency and save the social resources. It can replace the LV packaged switch cabinet.

Model Description

Technical parameter
